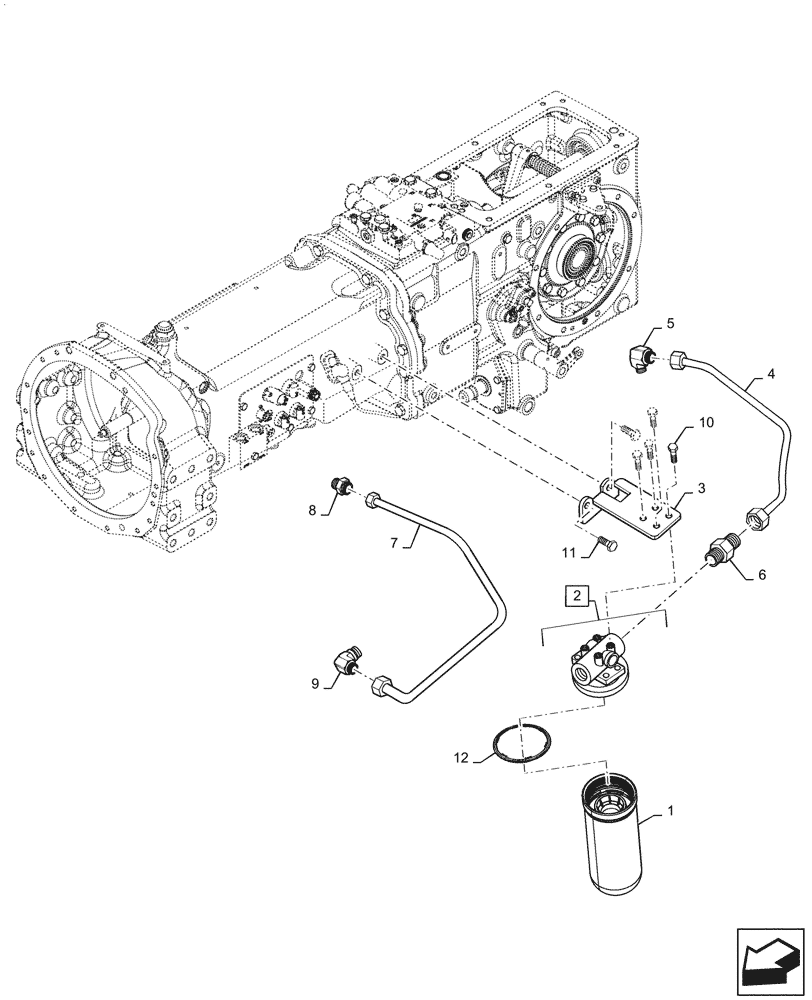

Запчасти Case IH FARMALL 45B CVT (35.300.AN[01]) - HYDRAULIC OIL PRESSURE FILTER & TUBING (35) - HYDRAULIC SYSTEMS

1

84582342

HYDRAULIC OIL FILTER

Filter, Hydraulic Oil, Spin On

1шт.

2

84582343

HYDRAULIC OIL FILTER

FILTER HEAD, Hydraulic Incl 1

1шт.

3

84601968

BRACKET

BRACKET, Filter Mounting

1шт.

4

84570448

HYDRAULIC HOSE

TUBE, HYD Valve to Filter

1шт.

Must Also Order Connector 86597761

1шт.

5

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

6

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

7

84570449

TUBE

TUBE, HYD Filter to Valve

1шт.

Must also Order 86579674

1шт.

8

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

1шт.

9

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

10

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

1шт.
