Запчасти Case IH FARMALL 45 (01.10.01) - ALTERNATOR KIT, 75AMP (01) - ENGINE

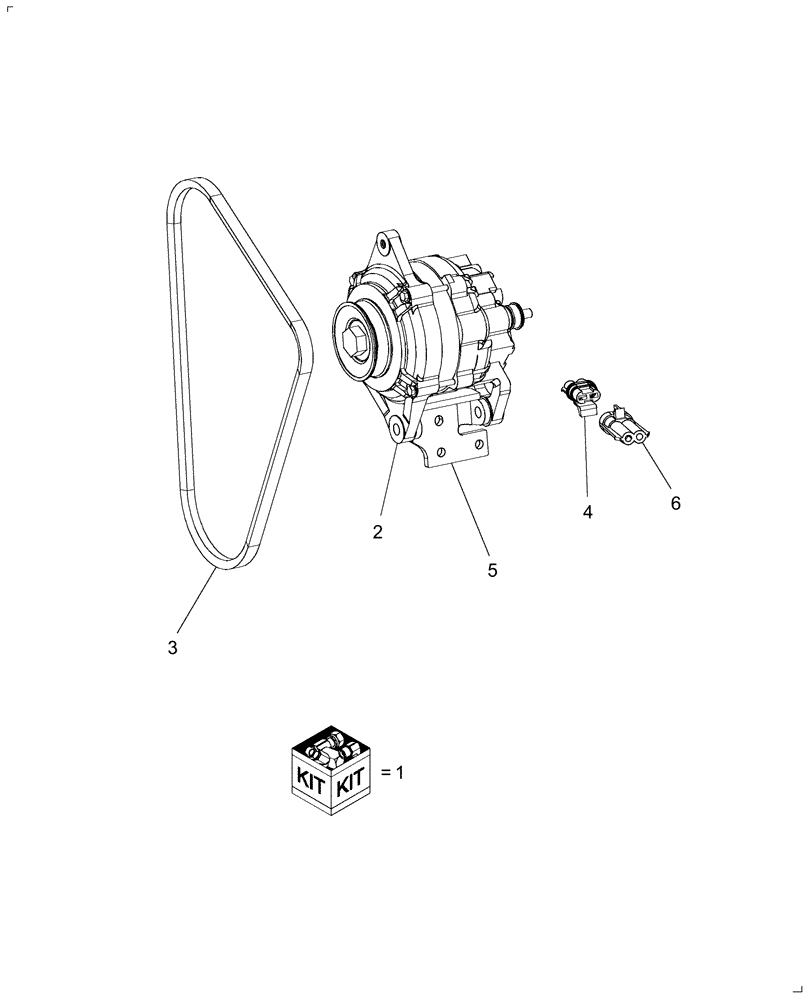

Схема запчастей Case IH FARMALL 45 - (01.10.01) - ALTERNATOR KIT, 75AMP (01) - ENGINE
1
6
2
5
4
3

Артикул

Название

Примечание

Количество

1

84174293

DIA KIT, TRACTOR

KIT, Alternatro 75AMP Includes: Ref.

1шт.

2

87614402

ALTERNATOR

75AMP

1шт.

3

87499975

V-BELT,12.45 mm W x 974.50 mm L

Fan

1шт.

4

84172801

MULTIPOLE CONNECTOR,Female, 2 Pole

Connector

1шт.

5

84173612

BRACKET

Lower

1шт.

6

84172817

MULTIPOLE CONNECTOR,Male, 2 Pole

Male

1шт.

7

84172828

TERMINAL

TERMINAL, Position Assurance

2шт.

Not Illustrated

1шт.

8

84172827

TERMINAL CONNECTOR

TERMINAL, Male

2шт.

Not Illustrated

1шт.

9

84172823

SEAL

SEAL, Cable

4шт.

Not Illustrated

1шт.

10

84172825

TERMINAL CONNECTOR

TERMINAL, Female

2шт.

Not Illustrated

1шт.

11

84183837

FUSE,80A, Maxil, Natural

FUSE, 80A Maxi

1шт.

Not Illustrated

1шт.
