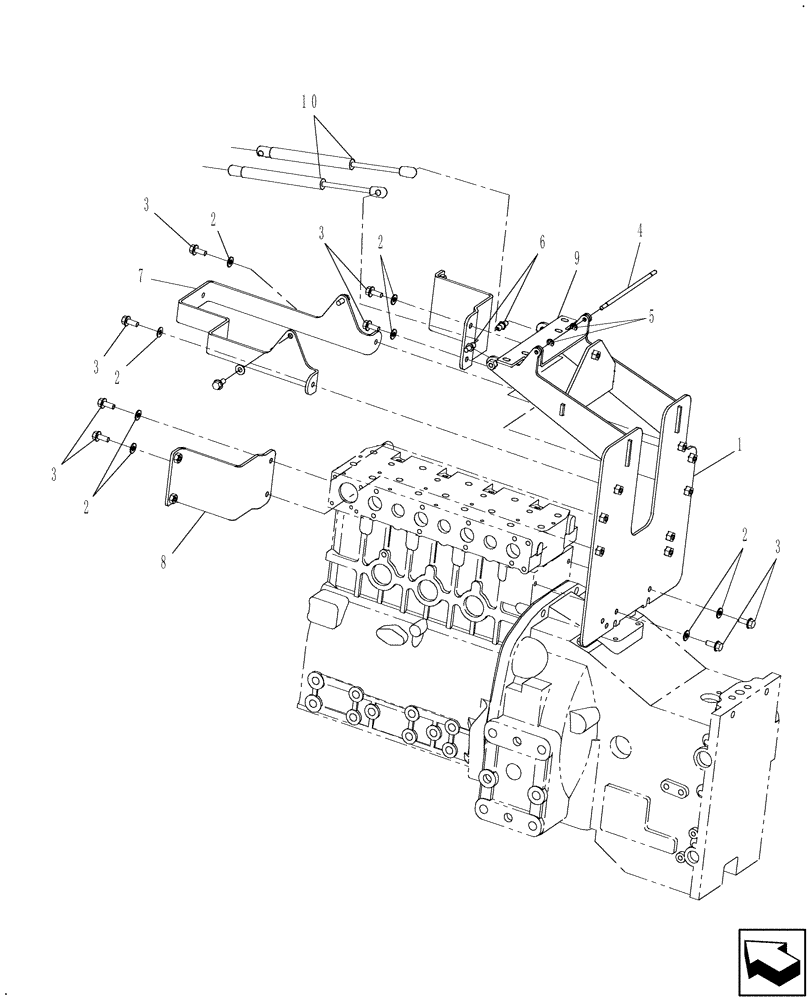

Запчасти Case IH FARMALL 45 (10.13) - FIREWALL (10) - OPERATORS PLATFORM/CAB

1

87567575

BRACKET

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

3

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

4

86400135

HINGE

Pivot Hood

1шт.

5

40937

SNAP RING,#25, .207" Dia, E-Type

2шт.

6

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

7

86403362

BRACKET

1шт.

8

86403374

BRACKET

Rear Hood Side Mount

2шт.

9

87300936

BRACKET

Rear Hinge

1шт.

10

86543899

GAS STRUT

Gas

2шт.
