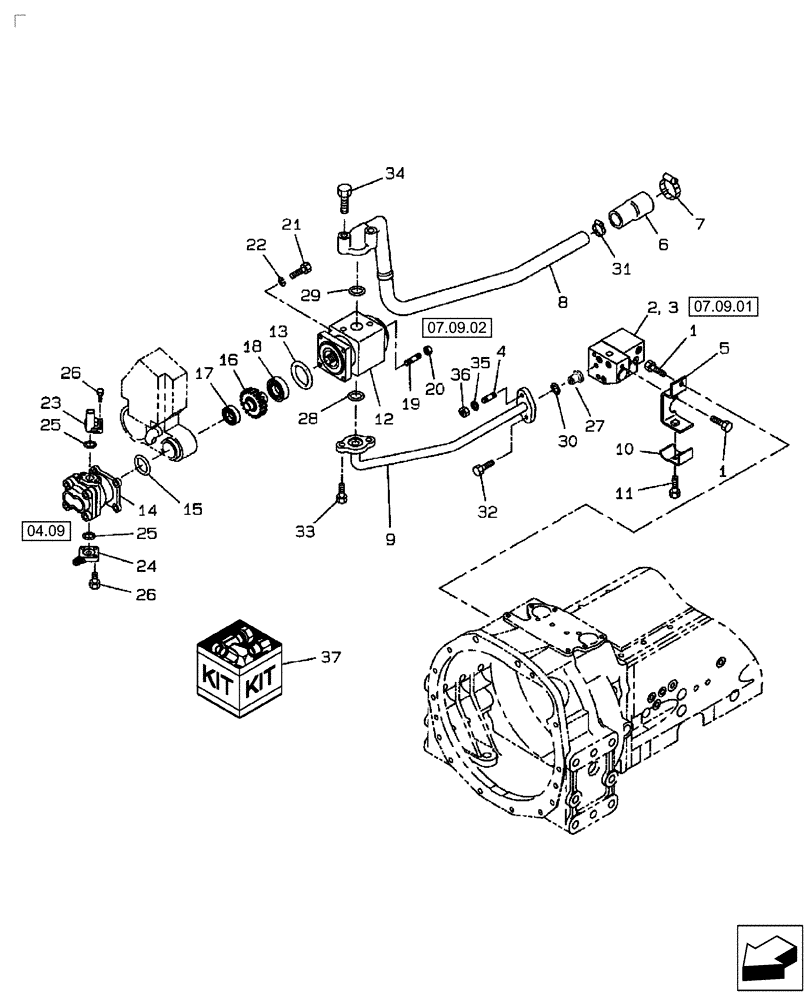

Запчасти Case IH FARMALL 45 (07.09) - HYD OIL PUMP & PIPING, POWER STEERING PUMP (07) - HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
SBA011510816
BOLT
M8 x 16
6шт.
2
SBA340016621
VALVE
Refer to Fig. 07.09.02 for Breakdown
1шт.
4
SBA012110825
BOLT
Stud
1шт.
5
SBA344912650
BRACKET
1шт.
6
SBA398120860
CONNECTION
1шт.
7
SBA398750450
BAND
Hose
1шт.
8
SBA340708150
RIGID TUBE
1шт.
9
SBA340708171
HYD TUBE
The 4-bolt flange tube will work in place of the 2-bolt flange tube by using two diaganol holes in the 4-bolt flange
1шт.
10
SBA399111510
CLAMP
1шт.
11
SBA011510845
BOLT
1шт.
12
SBA340450991
HYDRAULIC PUMP
3 Point
1шт.
SBA340450991R
REMAN-HYD PUMP
FARMALL 40, FARMALL 45, FARMALL 50 All 12X12 GEAR OR HST TRANSMISSION W/ROPS
1шт.
SBA340450991C
CORE-HYDRAULIC PUMP
Return Number
1шт.
13
SBA052310700
O-RING
1шт.
14
SBA340451020
HYDRAULIC PUMP
Power Steering, Ref. to Fig. 04.09 for details
1шт.
SBA340451020R
REMAN-HYD PUMP
FARMALL 40, FARMALL 45 BOTH 12X12 GEAR OR HST TRANSMISSION, FARMALL 50 ALL W/ROPS COMPACT TRACTOR
1шт.
SBA340451020C
CORE-HYDRAULIC PUMP
Return Number
1шт.
15
SBA052300600
O-RING,G60
1шт.
16
SBA340460240
GEAR
1шт.
17
SBA040106004
BALL BEARING
1шт.
18
279593
BALL BEARING,25mm ID x 47mm OD x 12mm W
1шт.
19
SBA012110865
STUD
2шт.
20
SBA021500008
NUT,M8
2шт.
22
E630153S71
LOCK WASHER,M8
Spring
2шт.
23
SBA340622510
FLANGE
1шт.
24
SBA340622240
FLANGE
1шт.
25
SBA052100200
O-RING,2.4mm Thk x 19.8mm ID, 70 Duro
2шт.
26
SBA011310625
CAPTIVE WASHER SCREW,Hex, M6 x 25, Cl 8.8
4шт.
27
SBA340520260
FILTER
1шт.
28
SBA052300250
O-RING
1шт.
29
SBA052300350
O-RING,3.1mm Thk x 34.4mm ID, 70 Duro
1шт.
30
SBA052100200
O-RING,2.4mm Thk x 19.8mm ID, 70 Duro
1шт.
31
SBA398750450
BAND
1шт.
32
SBA011510825
CAPTIVE WASHER SCREW,Hex, M8 x 25, G5
1шт.
33
SBA011511025
CAPTIVE WASHER SCREW,Hex, M10 x 25, G5
4шт.
34
SBA011511055
BOLT
2шт.
35
SBA026200008
WASHER
1шт.
36
SBA021500008
NUT,M8
1шт.
37
SBA340293698
SEAL KIT
Hydraulic Pump
1шт.
Выбрано товаров: 40
