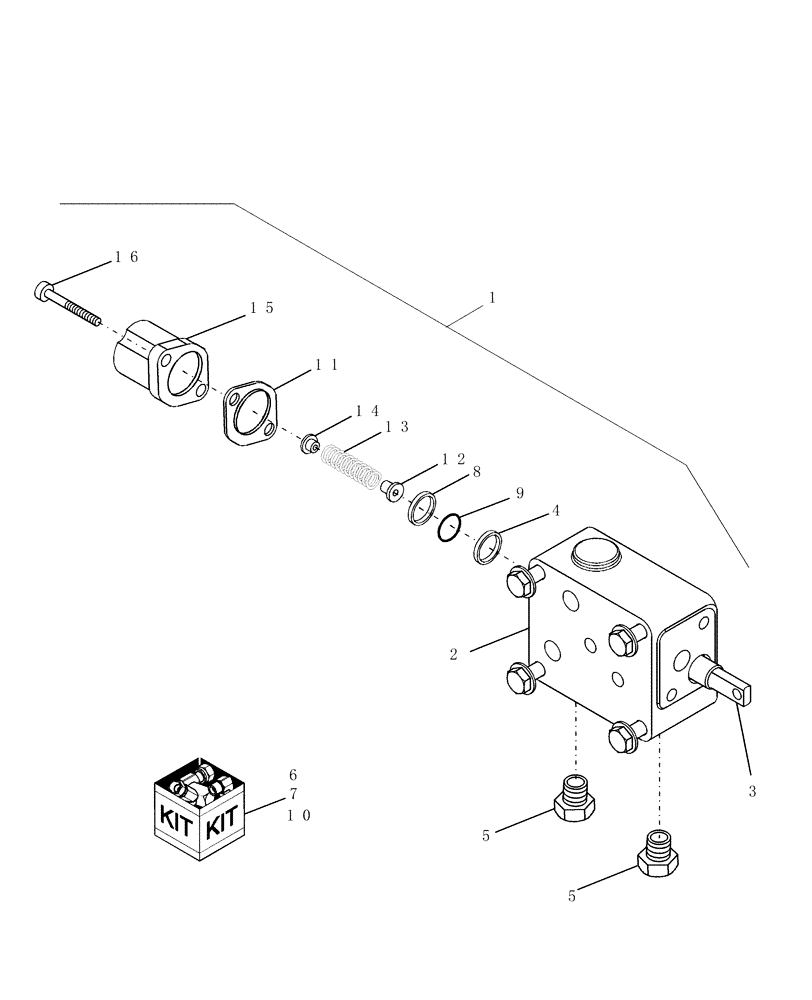

Запчасти Case IH FARMALL 45 (07.06.03) - REAR REMOTE VALVE (07) - HYDRAULIC SYSTEM

1

86554978

REMOTE CONTROL VALVE

Rear Includes: Ref. 2 thru 16

1шт.

2

NSS

NOT SOLD SEPARAT

Valve Body

1шт.

3

NSS

NOT SOLD SEPARAT

Spool

1шт.

4

NSS

NOT SOLD SEPARAT

Spool Back-Up

1шт.

5

NSS

NOT SOLD SEPARAT

Port Plug

2шт.

6

86532883

SEAL KIT

Includes: Ref. 8 thru 10

1шт.

7

86532884

KIT

Spring Center Includes: Ref. 11 thru 16

1шт.

8

NSS

NOT SOLD SEPARAT

Back-up Washer

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring

2шт.

10

NSS

NOT SOLD SEPARAT

O-Ring Kit

1шт.

11

NSS

NOT SOLD SEPARAT

Retainer Plate

1шт.

12

NSS

NOT SOLD SEPARAT

Stop Cup

2шт.

13

NSS

NOT SOLD SEPARAT

Spring

1шт.

14

NSS

NOT SOLD SEPARAT

Adapter

1шт.

15

NSS

NOT SOLD SEPARAT

End Cap

1шт.

16

NSS

NOT SOLD SEPARAT

Cap Screw

2шт.
