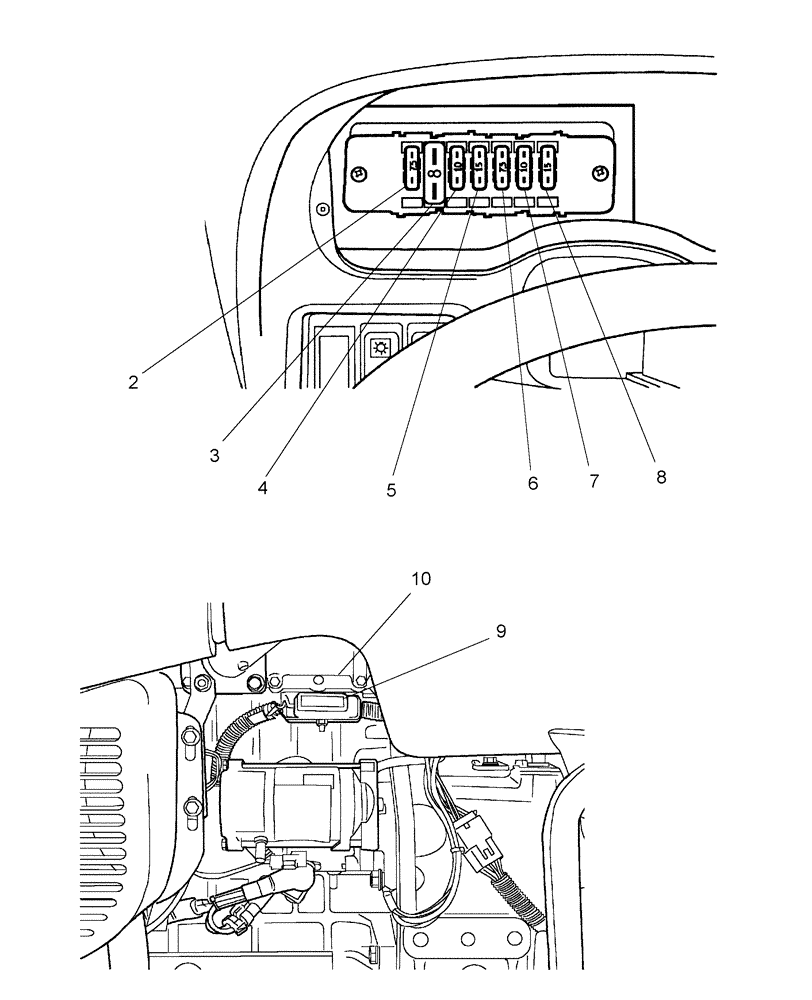

Запчасти Case IH FARMALL 45 (06.04) - FUSES (06) - ELECTRICAL SYSTEMS

1

86540976

BASE

Cover, Fuse

1шт.

Not Illustrated

1шт.

2

9623776

FUSE,7.5A, Micro, Brown

Voltage Regulator, Glow Plug Auto Heat Control

1шт.

3

86610928

CIRCUIT BREAKER

8 amp

1шт.

4

9811773

FUSE,10A, Micro, Red

Turn Signal, Rear Work Light

1шт.

5

9623774

FUSE,15 Amp

Main Lighting Control

1шт.

6

9623776

FUSE,7.5A, Micro, Brown

Instrument Panel

1шт.

7

9811773

FUSE,10A, Micro, Red

Hazard Flasher Lights, Auxiliary Power Socket

1шт.

8

9623774

FUSE,15 Amp

Front Head Lights, Auxiliary Rear Work Light

1шт.

9

86507935

FUSE

Main 40 amp Maxifuse

1шт.

10

86400994

BRACKET

Main Fuse

1шт.

11

87307817

BRACKET

Fuse Block

1шт.
