Запчасти Case IH FARMALL 45 (04.05.01) - POWER STEERING CYLINDER ASSEMBLY, W/FWD (04) - FRONT AXLE & STEERING

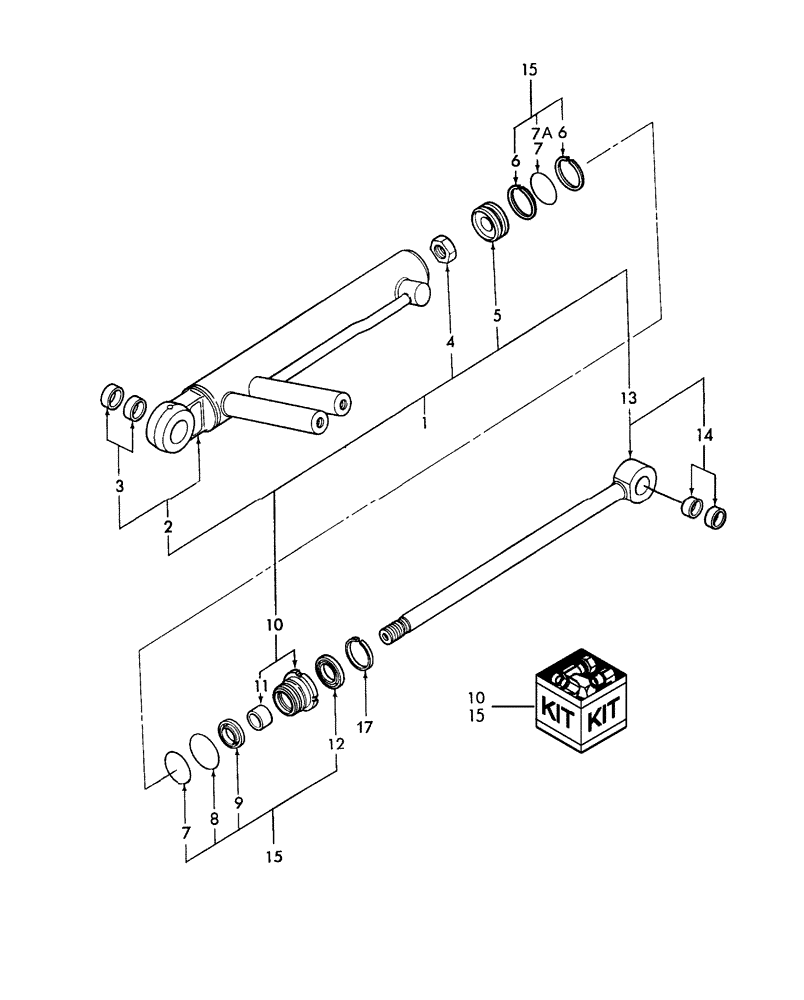

Схема запчастей Case IH FARMALL 45 - (04.05.01) - POWER STEERING CYLINDER ASSEMBLY, W/FWD (04) - FRONT AXLE & STEERING
14
4
3
9
6
6
8
12
11
10
5
7
17
15
15
13
7a
7
15
2
1
10

Артикул

Название

Примечание

Количество

1

SBA344952870

CYLINDER

Power Steering Includes: Ref. 2 thru 15, 17

1шт.

SBA344952871R

REMAN-HYD CYLINDER

FARMALL 40 12X12 GEAR OR HST TRANSMISSION W/ROPS, FARMALL 45 - 12X12 GEAR OR HST TRANSMISSION W/ROPS, FARMALL 50 12X12 W/ROPS, Reman for New P/N SBA344952870

1шт.

SBA344952871C

CORE-HYD CYLINDER

Return Number

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Tube Includes: Ref. 3

1шт.

3

SBA344960434

BUSHING

2шт.

4

SBA020910014

NUT

M14

1шт.

5

NSS

NOT SOLD SEPARAT

Piston

1шт.

6

NSS

NOT SOLD SEPARAT

RING Backup

2шт.

7

SBA052310350

O-RING

1шт.

7a

SBA052110340

O-RING

1шт.

8

SBA052400420

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

Packing, Rod

1шт.

10

SBA344960455

REPAIR KIT

Guide, Includes: Ref. 11

1шт.

11

SBA344960430

BUSHING

1шт.

12

NSS

NOT SOLD SEPARAT

Seal, Dust

1шт.

13

SBA344960451

ROD

Includes: Ref. 14

1шт.

14

SBA344960433

BUSHING

ID .8770"/OD .9915

2шт.

15

SBA344960442

REPAIR KIT

Includes: Ref. 6, 7, 7A, 8, 9 & 12

1шт.

17

SBA344960438

SNAP RING

1шт.

Выбрано товаров: 19
