Запчасти Case IH FARMALL 45 (03.16) - REAR TRANSMISSION, MID PTO (03) - TRANSMISSION

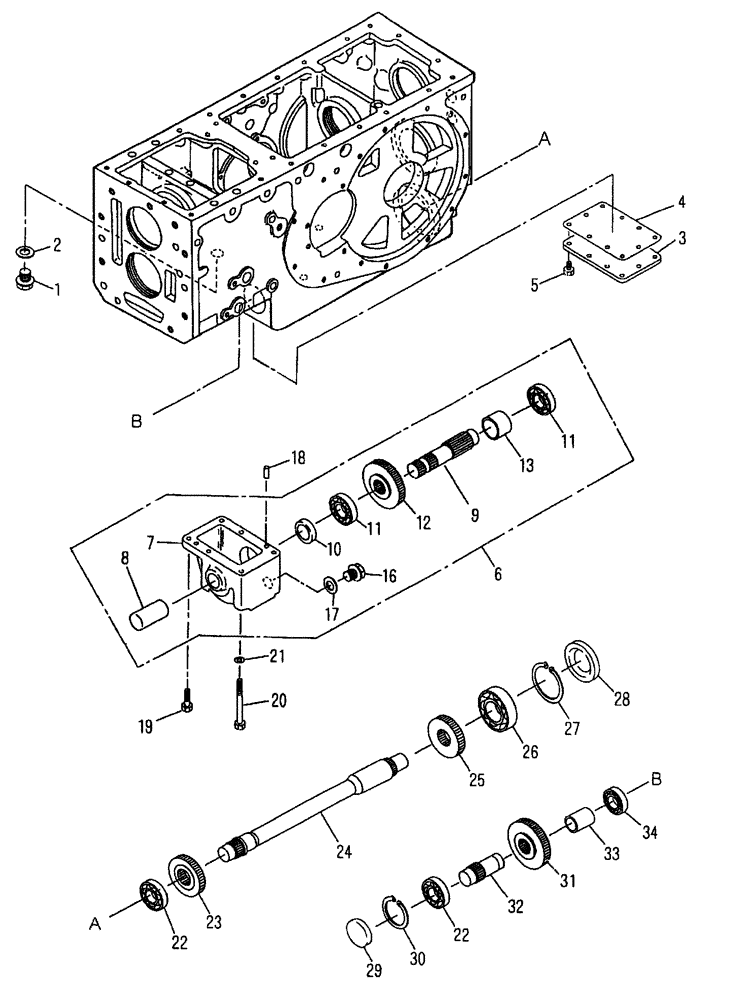

Схема запчастей Case IH FARMALL 45 - (03.16) - REAR TRANSMISSION, MID PTO (03) - TRANSMISSION
3
28
12
22
25
6
13
18
4
29
17
27
11
22
16
7
2
33
9
30
21
31
10
19
8
24
26
23
5
11
1
20
32
34

Артикул

Название

Примечание

Количество

1

SBA064600016

PLUG

M16

1шт.

2

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

1шт.

3

SBA322213410

COVER

Mid PTO Case

1шт.

4

SBA322991181

GASKET

1шт.

5

SBA011510816

BOLT

M8 x 16

10шт.

6

NSS

NOT SOLD SEPARAT

Drop Box Assy, Includes: Ref. 7 thru 17

1шт.

7

SBA322117200

CASING

Mid PTO Transmission

1шт.

8

SBA398115500

CAP COVER

PTO

1шт.

9

SBA322590830

SHAFT

MID PTO

1шт.

10

SBA050203125

SEAL

Oil

1шт.

11

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

12

SBA322325850

GEAR

Fixing A, Mid PTO

1шт.

13

SBA399232320

COLLAR

1шт.

16

SBA064600016

PLUG

M16

1шт.

17

SBA025100016

WASHER,16.4mm ID x 27mm OD x 2mm Thk

Seal

1шт.

18

SBA030500820

PIN

Knock

2шт.

19

SBA011510825

CAPTIVE WASHER SCREW,Hex, M8 x 25, G5

2шт.

20

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

4шт.

21

E630153S71

LOCK WASHER,M8

Spring

4шт.

22

SBA040109054

BALL BEARING,25mm ID x 52mm OD x 15mm W

2шт.

23

SBA322325830

GEAR

Fixing, Mid PTO

1шт.

24

SBA322571390

COUNTERSHAFT

Mid PTO

1шт.

25

SBA322325820

GEAR

Fixing, Mid PTO

1шт.

26

46805

BALL BEARING,30mm ID x 72mm OD x 19mm W

Ball

1шт.

27

370018

SNAP RING,M72, Internal

1шт.

28

SBA322140270

COVER

1шт.

29

SBA322140640

PLUG

Seal ID= 1.766" x OD=2.06" x 0.398" thick

1шт.

30

33915

SNAP RING,2.062", Int, #206

1шт.

31

SBA322325840

GEAR

Fixing, Mid PTO

1шт.

32

SBA322571380

COUNTERSHAFT

PTO

1шт.

33

SBA399235531

COLLAR

1шт.

34

210041

BALL BEARING,25mm ID x 52mm OD x 15mm W

1шт.

Выбрано товаров: 32
