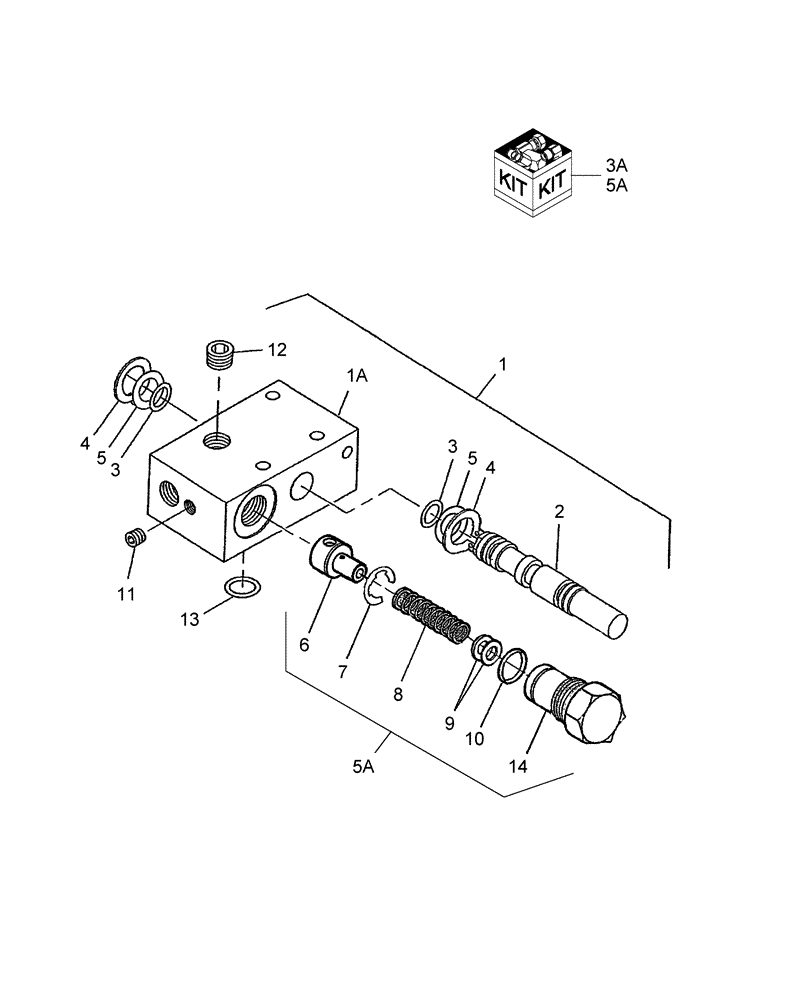

Запчасти Case IH FARMALL 45 (03.13.01) - CONTROL VALVE, PTO (03) - TRANSMISSION

1

SBA340016461

HYDRAULIC VALVE

PTO Control, Includes: Ref. 1A thru 15

1шт.

1a

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

O-Ring, ID, 11.2mm, OD, 16.3mm & Depth, 1.88mm

2шт.

3a

SBA340293800

SEAL KIT

Repair, Includes: Ref. 3,4,9,13 & 14

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Snap

2шт.

5

NSS

NOT SOLD SEPARAT

Spacer

2шт.

5a

SBA340293764

REPAIR KIT

Check Valve, Includes: Ref. 6,7,8,9,10 & 14

1шт.

6

NSS

NOT SOLD SEPARAT

Poppet

1шт.

7

NSS

NOT SOLD SEPARAT

Ring, Snap

1шт.

8

NSS

NOT SOLD SEPARAT

Spring

1шт.

9

SBA340293803

SHIM

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, P14

1шт.

11

NSS

NOT SOLD SEPARAT

Plug

1шт.

12

NSS

NOT SOLD SEPARAT

Plug

1шт.

13

NSS

NOT SOLD SEPARAT

O-Ring

3шт.

14

NSS

NOT SOLD SEPARAT

Cap, Plug

1шт.
