Запчасти Case IH FARMALL 45 (02.02.01) - COOLING SYSTEM, RADIATOR W/ALUMINUM CORE (02) - ENGINE EQUIPMENT

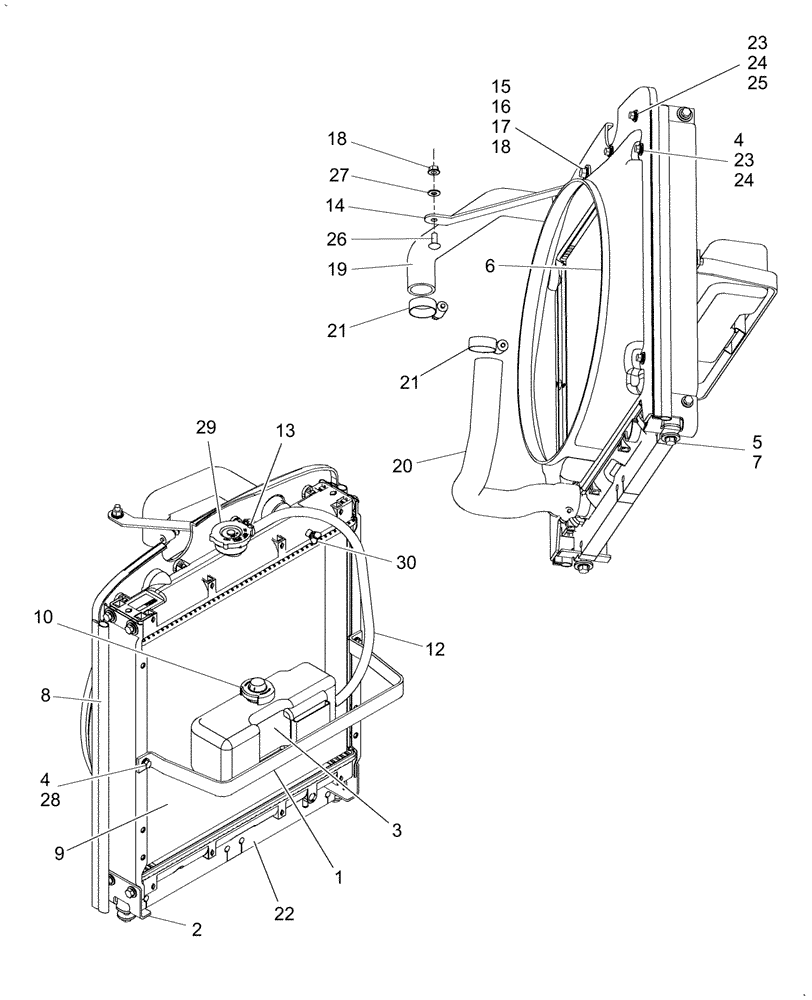

Схема запчастей Case IH FARMALL 45 - (02.02.01) - COOLING SYSTEM, RADIATOR W/ALUMINUM CORE (02) - ENGINE EQUIPMENT
18
10
16
23
18
28
6
24
19
27
3
1
14
21
4
7
4
13
9
17
5
21
29
12
2
26
15
25
22
8
23
30
20
24

Артикул

Название

Примечание

Количество

1

87385836

BRACKET

Overflow Bottle

1шт.

2

87324723

BRACKET, SUPPORTING

2шт.

3

5176648

TANK

1шт.

4

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

5

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

6

87390258

SHROUD

1шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

8

87324971

EDGE

Shroud

2шт.

9

87305450

RADIATOR

FARMALL 40 Includes: Ref. 29 & 30

1шт.

9

87305449

RADIATOR

FARMALL 45, FARMALL 50 Includes: Ref. 29 & 30

1шт.

10

4153008

SEAL

SEALRING

1шт.

11

4274034

CAP

1шт.

12

87324970

BOTTLE

1шт.

13

86400352

CLAMP

2шт.

14

87390259

BRACKET

1шт.

15

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

16

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

1шт.

17

87016617

LOCK WASHER,M8

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

87389758

HOSE

Upper

1шт.

20

87308725

RADIATOR HOSE,33.00 mm ID, 41.00 mm ID, 172.00 mm

Lower

1шт.

21

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

22

87308701

SEAL

1шт.

23

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

24

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

25

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

26

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

27

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

28

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

29

87522876

RADIATOR CAP

1шт.

30

87032485

DRAINCOCK/TAP SUPPLY

1шт.

Выбрано товаров: 31
