(11.03) - FRONT END & WHEEL WEIGHTS

Запчасти Case IH FARMALL 45 (11.03) - FRONT END & WHEEL WEIGHTS (11) - WHEELS/TRACKS

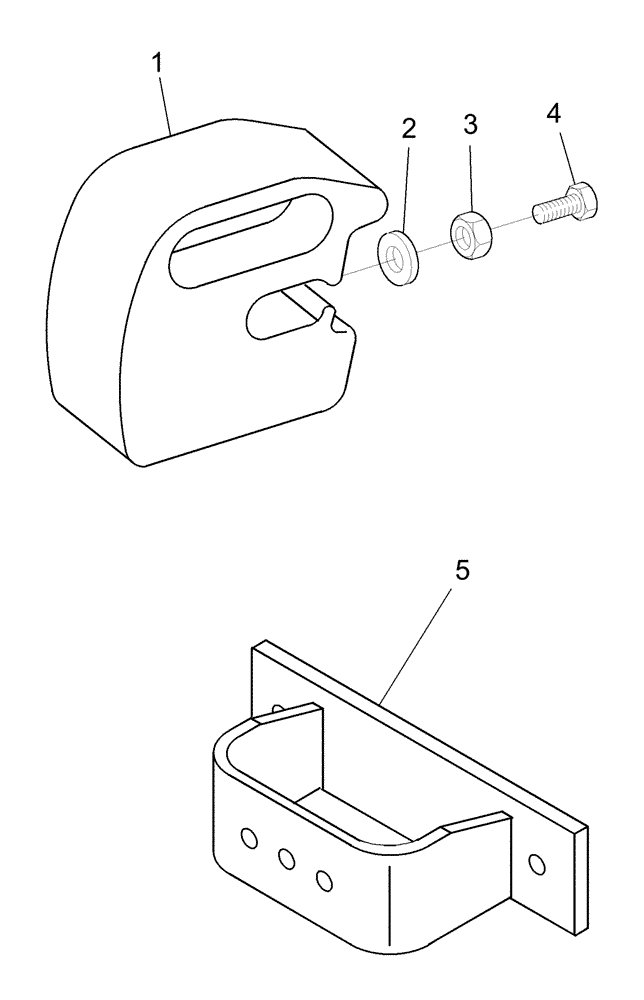

Схема запчастей Case IH FARMALL 45 - (11.03) - FRONT END & WHEEL WEIGHTS (11) - WHEELS/TRACKS
3
4
5
2
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

710215046

WEIGHT

Weight, Front End, 60 LB

1шт.

Order thru Wholegoods

1шт.

Max Of 2 With All Axle/Tire Combinations

1шт.

1

718215056

WEIGHT

Weight, Front End, 100 LB

1шт.

Max Of 2 With All Axle/Tire Combinations

1шт.

NH-NA

1шт.

2

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

1шт.

3

280374

NUT,Hex, 5/8" - 11, Gr 5

1шт.

4

280508

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

5

86402249

BRACKET

Weight, Will Hold Up To (5) 60lb. weights (710215013), or (5) 100lb. weights (718215006)

1шт.
