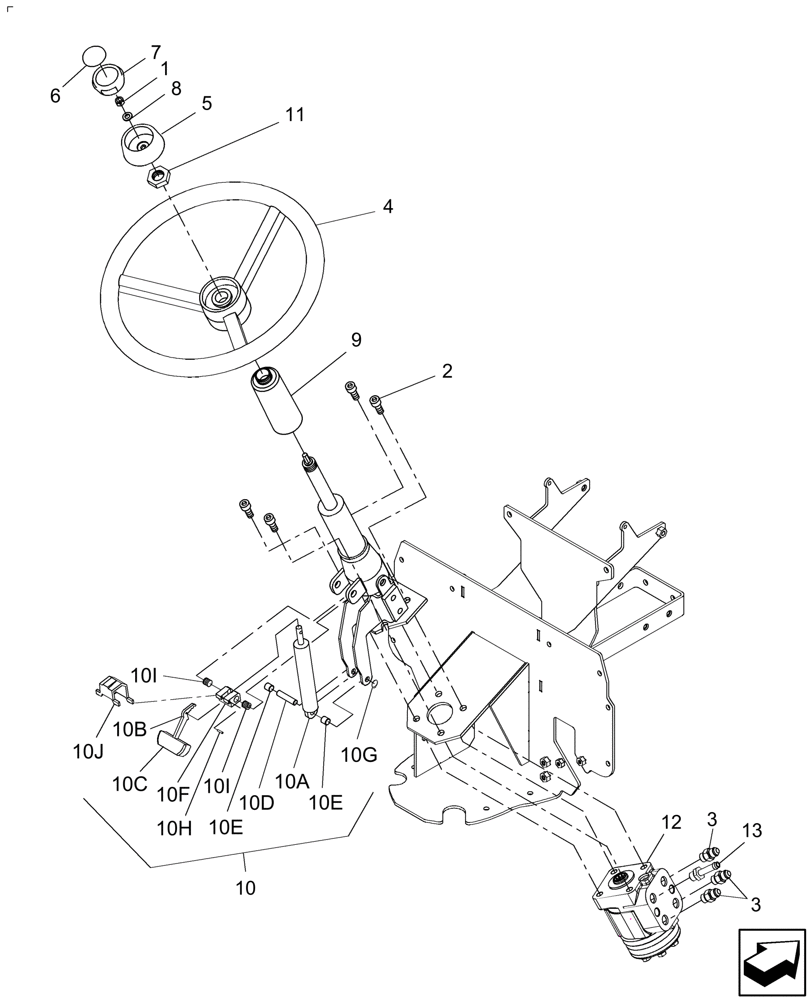

Запчасти Case IH FARMALL 45 (10.09) - STEERING COLUMN, TILT (10) - OPERATORS PLATFORM/CAB

1

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

2

120052

HEX SOC SCREW,M10 x 25mm, Cl 8.8

4шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

3шт.

4

9821708

STEERING WHEEL

1шт.

5

87302160

KNOB

1шт.

6

86401707

EMBLEM

Case/IH Emblem

1шт.

6a

87308002

DISC

Used to Improve Retention of CIH Logo in Steering Wheel

1шт.

Not Illustrated

1шт.

7

87302798

CAP,54mm OD, Black

Cap, Steering Wheel

1шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

1шт.

9

86522881

COVER

Telescope

1шт.

10

87329101

STEERING COLUMN

Includes Ref. 10A-10I

1шт.

10a

86522914

SHOCK ABSORBER

Gas

1шт.

10b

87333647

HANDLE

Handle, Tilt Lever

1шт.

10c

87333649

HANDLE

1шт.

10d

87333650

PIN,M10 x 45 L

1шт.

10e

87333651

SPACER

2шт.

10f

87335459

BLOCK

1шт.

10g

800-4310

CIRCLIP,M10

1шт.

10h

NS

NOT SERVICED

3 x24mm Coiled Spring Pin

1шт.

10i

84582797

HEX SOC SCREW

Hex Soc Hd, M8 x 12, 8.8

2шт.

10j

86401203

COVER

Gas Strut

1шт.

11

86530985

JAM NUT,13/16"-20

1шт.

12

86402720

HYDRAULIC STEERING

Motor, Power Steering Control, 74CC, 100 BAR, Eaton 291-1027-002

1шт.

12

87575845

HYDRAULIC STEERING

Power Motor, 80CC, 100 BAR, Eaton 401-1061-55

1шт.

13

87360975

HYD CONNECTOR,3/8" Barb x 9/16"-18 x 2 3/16" L

Hose

1шт.
