(10.07) - HAND THROTTLE ASSEMBLY

Запчасти Case IH FARMALL 45 (10.07) - HAND THROTTLE ASSEMBLY (10) - OPERATORS PLATFORM/CAB

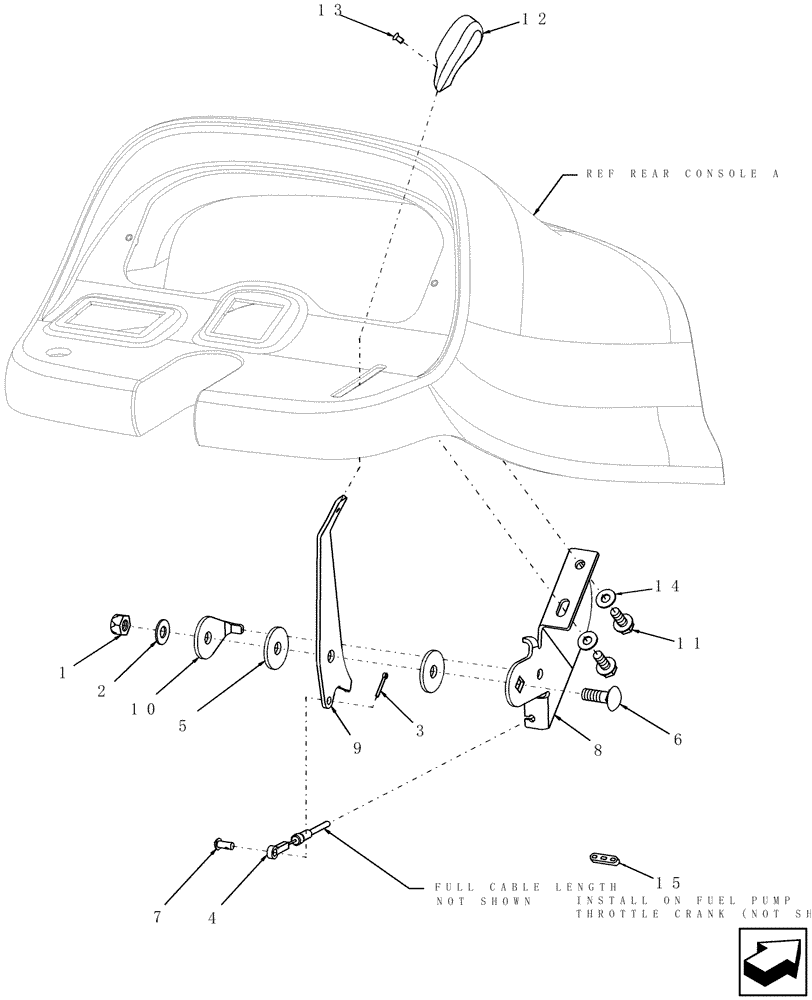

Схема запчастей Case IH FARMALL 45 - (10.07) - HAND THROTTLE ASSEMBLY (10) - OPERATORS PLATFORM/CAB
full cable length
8
4
12
6
2
14
throttle crank (not shown)
10
install on fuel pump
not shown
3
7
5
ref rear console a
13
11
15
9
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

100037

LOCK NUT,M10 x 1.5, Cl 8

1шт.

2

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

3

280250

COTTER PIN,3/32" OD x 3/4" L

1шт.

4

SBA312070220

FLEXIBLE CABLE

Throttle

1шт.

5

86504705

WASHER,M11.1 x 37.9 x 3.3 Thk, Plastic

2шт.

6

86512446

CARRIAGE BOLT,M10 x 1.5 x 30mm, Cl 8.8

1шт.

7

86534989

RIVET,Button, 6mm OD x 14mm L

1шт.

8

86567765

BRACKET

Hand Throttle

1шт.

9

86567866

LEVER

Throttle

1шт.

10

86573736

WASHER

1шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

12

9841607

KNOB

Throttle

1шт.

13

9844207

SCREW,Phillips Drive, Oval HD, M4 x 8mm, Cl 4.8

1шт.

14

492-11031

LOCK WASHER,5/16"

2шт.

15

SBA398114451

RUBBER BUSHING

Installed on Fuel Pump Throttle Crank

1шт.
