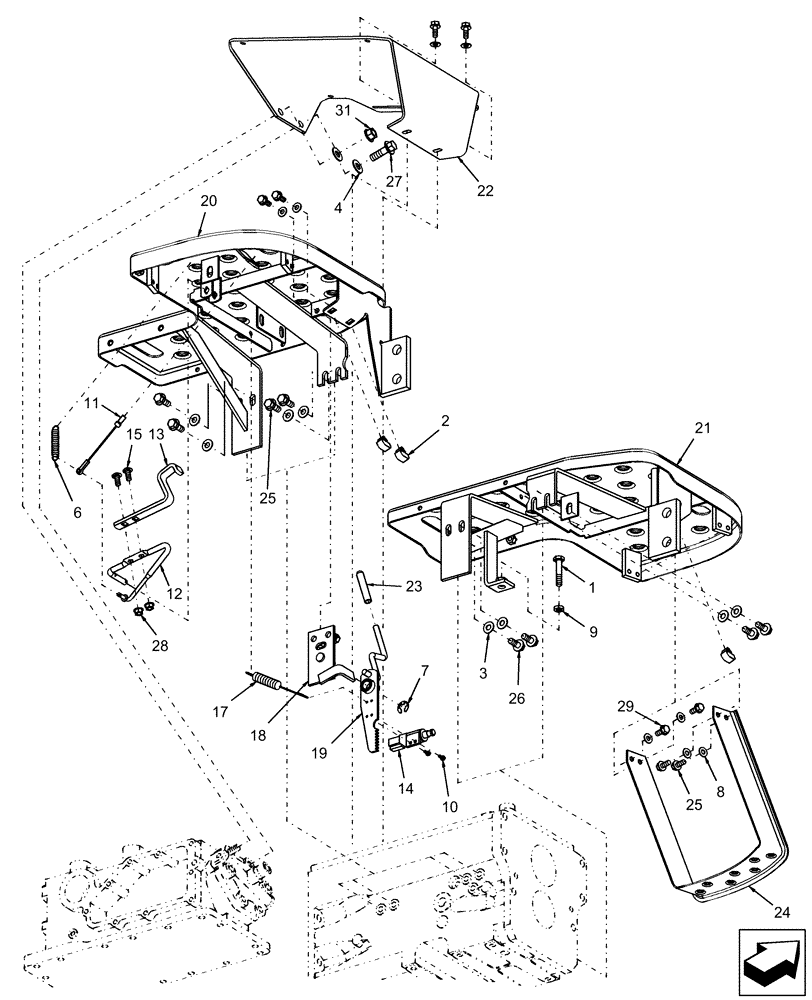

Запчасти Case IH FARMALL 45 (10.05) - PLATFORM, STEPS & FOOT THROTTLE, 12X12 GEAR (10) - OPERATORS PLATFORM/CAB

1

120113

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8, Full Thd

1шт.

2

128104

BUMPER

3шт.

3

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

4

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

6

18

SPRING

1шт.

7

505291

LOCKING RING,#62, .480" Dia, E-Type

1шт.

8

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

9

354720

NUT,Thin, M10 x 1.5, Cl 04

Jam, M10

1шт.

10

392696

SELF-TAP SCREW,HWH, M4 x 0.7 x 10mm

Self-Tapping, HWH, M4 x .7 x 10

2шт.

11

SBA312070300

FLEXIBLE CABLE

Throttle

1шт.

12

86400126

SHAFT

Accelerator Pedal

1шт.

13

86400127

PEDAL

Accelerator

1шт.

14

86400228

SWITCH

1шт.

15

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

2шт.

17

86530816

SPRING

Extension

1шт.

18

86558138

BRACKET

Parkbrake

1шт.

19

86403965

RATCHET

1шт.

20

86401523

PLATFORM

Right

1шт.

21

86401524

PLATFORM

Left

1шт.

22

86401875

PLATE

Seat

1шт.

23

86567967

HANDLE GRIP

Parkbrake

1шт.

24

86401196

STEP

2шт.

25

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

26

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

27

9804268

BOLT,Hex, M12 x 40mm, Cl 8.8, Full Thd

Cap, Flg Hd, CL 8.8, M12 x 1.75 x 40

1шт.

28

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

29

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

30

86401063

ANCHOR

Located on Left Hand side under step, attached to transmission housing by two bolts (9804271).

1шт.

Not Illustrated

1шт.

31

86512497

FLANGE NUT,M12 x 1.75, Cl 10

1шт.
