Запчасти Case IH FARMALL 45 (10.04) - DELUXE SEAT & ARM REST KIT - 718852026 W/HST (10) - OPERATORS PLATFORM/CAB

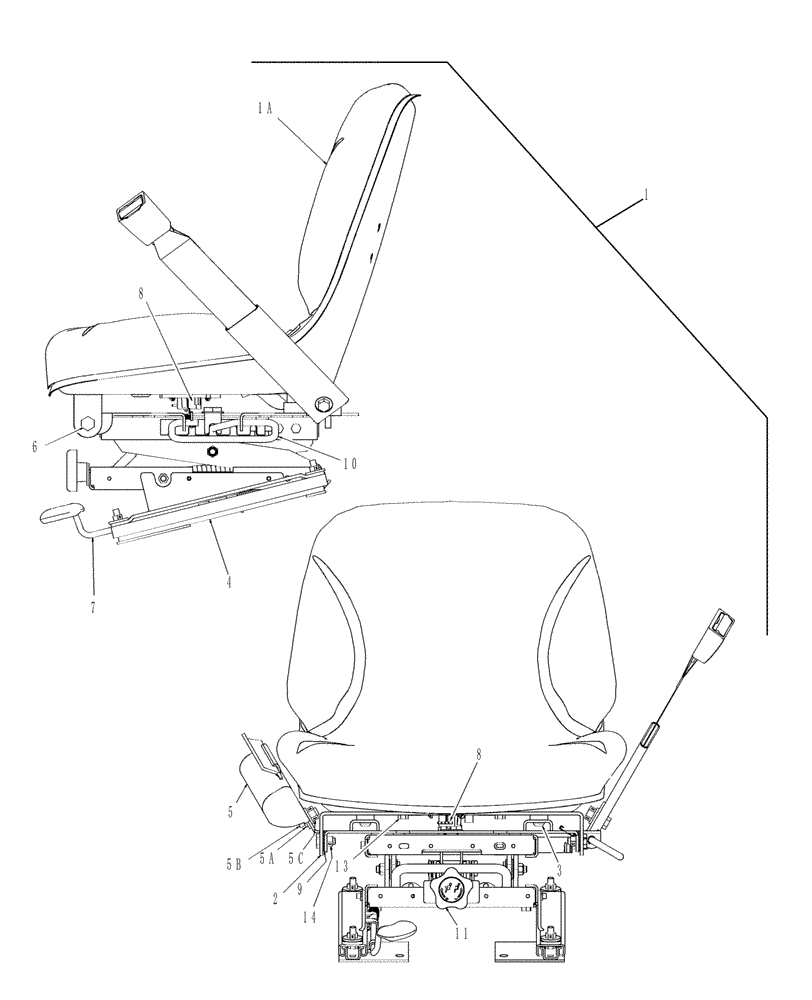

Схема запчастей Case IH FARMALL 45 - (10.04) - DELUXE SEAT & ARM REST KIT - 718852026 W/HST (10) - OPERATORS PLATFORM/CAB
7
11
6
5c
4
1a
3
14
5
13
2
5a
8
8
5b
9
1
10

Артикул

Название

Примечание

Количество

1

0C

ORDER COMPONENTS

Seat Assembly, Complete Includes: Ref. 1A-14

1шт.

1a

87385236

SEAT

Seat Top

1шт.

2

87385280

SEAT PLATE

Plate, Tilt Bracket

1шт.

3

276467

BUMPER

Bumper, Seat Pan

1шт.

4

87726609

SUSPENSION

Suspension Assembly

1шт.

5

86403923

SAFETY BELT ,48.00 mm W

Retractable W/Clip

1шт.

5a

PL

PROCURE LOCALLY

Washer, Flat

4шт.

5b

PL

PROCURE LOCALLY

Bolt, Hex HD 7/16-20

2шт.

5c

PL

PROCURE LOCALLY

Nut, Centerlock 7/16-20

2шт.

6

87385284

SPECIAL BOLT

Bolt, Shoulder 3/8"

2шт.

7

87726629

SLIDE

Kit, Slide

1шт.

8

87385234

SWITCH

Operator's Presence, 4 Pin Twist Lock

1шт.

9

87363666

SPACER

Spacer, Plastic 1.57mm Thick, Pivot Bushing

2шт.

10

87636088

SWIVEL PIVOT

Swivel Assembly

1шт.

11

87385286

KNOB

Knob, Weight Adjustment

1шт.

12

87385287

SERVICE KIT

Swivel Hardware

1шт.

13

PL

PROCURE LOCALLY

Bolt, Hex HD 5/16-18

2шт.

14

PL

PROCURE LOCALLY

Nut, CenterLock 3/8-16

2шт.

15

718852026

ARMREST

KIT, Includes:

1шт.

Not Included with 86403798 Complete Driver Seat

1шт.

(1) ARMREST ASSY, RH

1шт.

(1) ARMREST BRACKET ASSY

1шт.

(1) PLATE, cover, LH

1шт.

(1) PLATE, cover, RH

1шт.

(2) STOP, armrest

1шт.

(4) BOLT, 3/8-16x.75

1шт.

(2) SCREW, #10

1шт.

(4) LOCKWASHER, .375

1шт.

(2) WASHER, wave

1шт.

Выбрано товаров: 29
