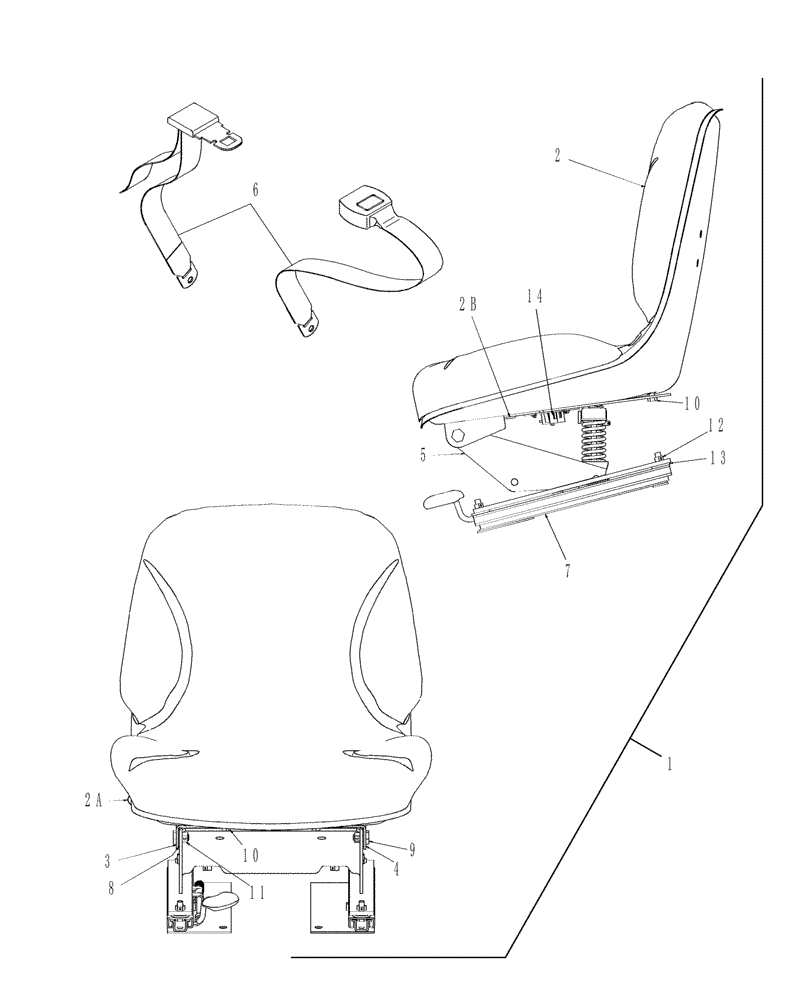

Запчасти Case IH FARMALL 45 (10.02) - ECONOMY SEATS W/12X12 GEAR (10) - OPERATORS PLATFORM/CAB

1

0C

ORDER COMPONENTS

Seat Assembly, Includes: Ref. 2-13 & Parts Shown on Fig. 10.02.01

1шт.

2

87385236

SEAT

Seat Top

1шт.

3

87365969

BRACKET

Tilt, RH

1шт.

4

87365968

BRACKET

Tilt, LH

1шт.

5

87387179

SUSPENSION

Suspension Refer to Fig. 10.02.01 for Breakdown

1шт.

6

86530933

SAFETY BELT ,48.00 mm W

1шт.

7

87538109

SLIDE

Kit Refer to Fig. 10.02.01 for Breakdown

1шт.

8

87363666

SPACER

2шт.

9

86560540

BOLT

2шт.

10

PL

PROCURE LOCALLY

Bolt, Hex Hd 5/16-18 UNC-2A

4шт.

11

PL

PROCURE LOCALLY

Nut, Centerlock 3/8-16 UNC

2шт.

12

87382

LOCK NUT,5/16"-18, GB

4шт.

13

PL

PROCURE LOCALLY

Washer, Flat .390ID x 1.12OD

4шт.

14

87385234

SWITCH

Operator's Presence

1шт.
