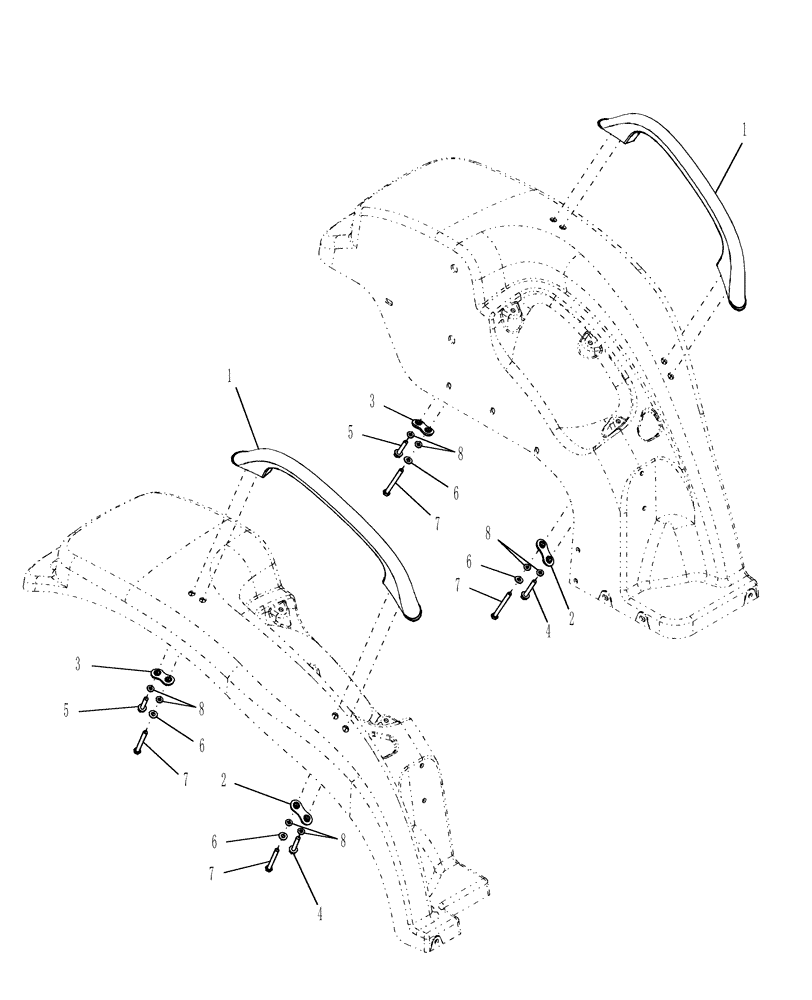

Запчасти Case IH FARMALL 45 (08.04) - GRAB RAIL (09) - IMPLEMENT LIFT

1

86404314

HANDLE

GRAB RAIL

2шт.

2

87300227

GROMMET

SUPPORT, GRAB HANDLE FRONT

2шт.

3

87300228

GROMMET

SUPPORT, GRAB HANDLE REAR

2шт.

4

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

5

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

2шт.

6

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

7

43133

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

4шт.

8

86511315

WASHER,8.4mm ID x 16mm OD x 1.8mm Thk

8шт.
