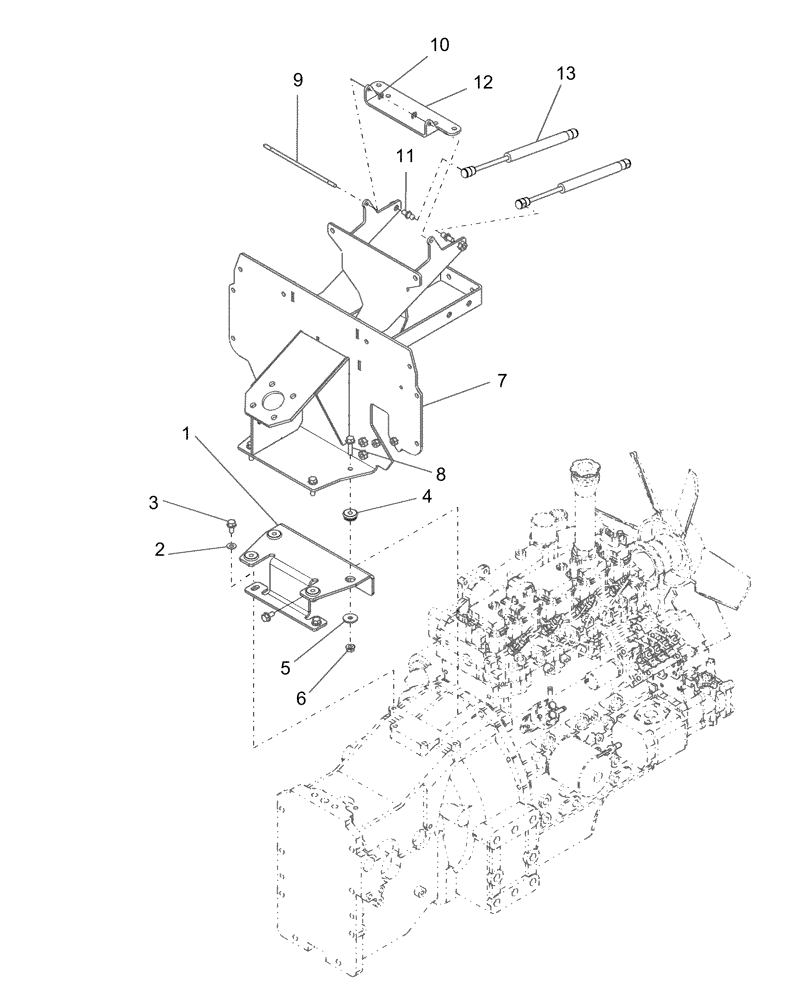

Запчасти Case IH FARMALL 45 (08.03.03) - FIREWALL (08) - SHEET METAL

1

86402641

BRACKET

1шт.

2

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

3

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

4

86400620

ISOLATOR

4шт.

5

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

12шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

7

86567753

BRACKET

Console

1шт.

8

86511842

BOLT,M8 x 1.25 x 48.1mm OAL, Cl 8.8

4шт.

9

86400135

HINGE

Pivot Hood

1шт.

10

40937

SNAP RING,#25, .207" Dia, E-Type

2шт.

11

83952214

BALL STUD,M8 x 29.5mm OAL

BALL PIN

2шт.

12

87300936

BRACKET

Rear Hinge

1шт.

13

86543899

GAS STRUT

Gas

2шт.
