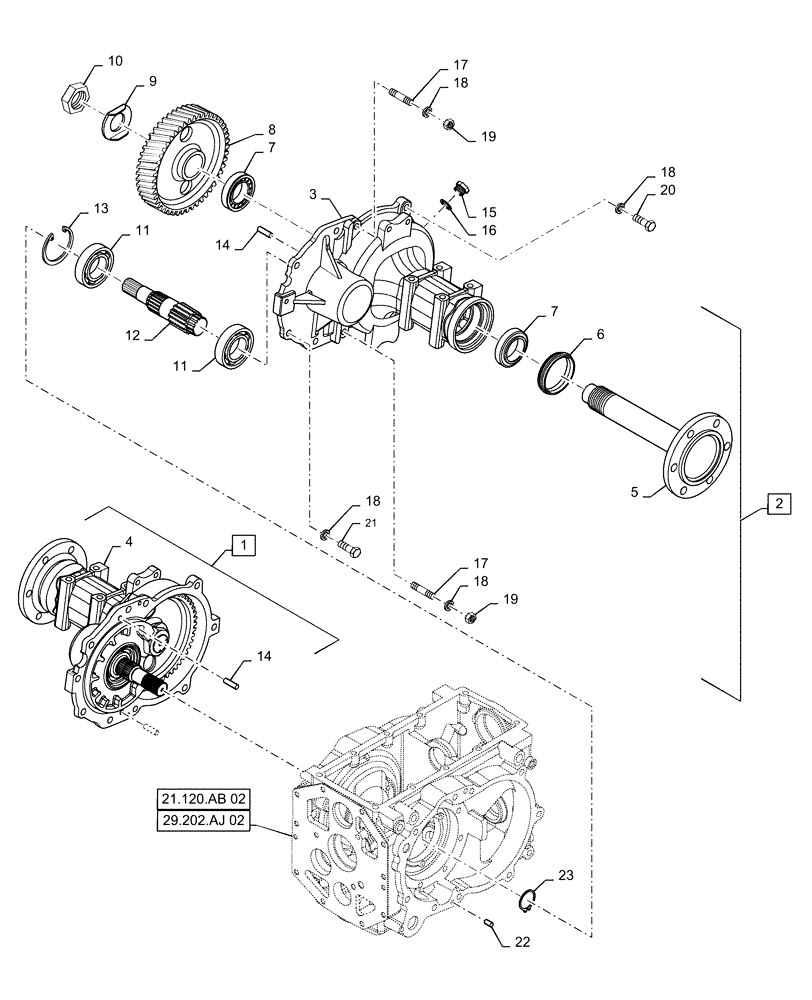

Запчасти Case IH FARMALL 40C (27.100.AK[02]) - REAR AXLE, FARMALL 40C, 50C (27) - REAR AXLE SYSTEM

1

MT20100633

DRIVE

Assy, RH Incl 4 and 5 - 16

1шт.

2

MT20100632

DRIVE

Assy, LH Incl 3 and 5 - 16

1шт.

3

MT40163718

CASE

Final Drive, LH

1шт.

4

MT40163724

CASE

Final Drive, RH

1шт.

5

MT40163722

SHAFT

Rear Axle

2шт.

6

MT40211891

SEAL

Group

2шт.

7

MT40010136

TAPERED BEARING,55mm ID x 90mm OD x 23mm L

4шт.

8

MT40163719

GEAR

Final Drive

2шт.

9

MT40163723

PLATE

Lock

2шт.

10

MT40012791

NUT,M45 x 1.5 Pitch

2шт.

11

MT40012930

BALL BEARING

4шт.

12

MT40163721

PINION

Gear

2шт.

13

MT40124415

SNAP RING,M100

2шт.

14

MT40116294

PIN,10mm OD x 40mm L

Spring

4шт.

15

MT40012897

DRAIN PLUG,M20 x 1.5

1шт.

16

MT40229916

SEAL,20mm ID x 26mm OD x 1.5mm L

Plug

1шт.

17

MT40091897

BOLT,M14 x 2 x 50mm

4шт.

18

MT40029083

WASHER,14.2mm ID x 24.7mm OD x 4.2mm Thk

Spring

20шт.

19

MT40028727

NUT,Hex, M14 x 2

4шт.

20

MT40029401

BOLT,Hex, M14 x 2 x 50mm

8шт.

21

MT40029397

BOLT,Hex, M14 x 2 x 40mm

8шт.

22

MT40029102

PIN,M10 x 20mm L

4шт.

23

MT40029279

SNAP RING,M45

2шт.
