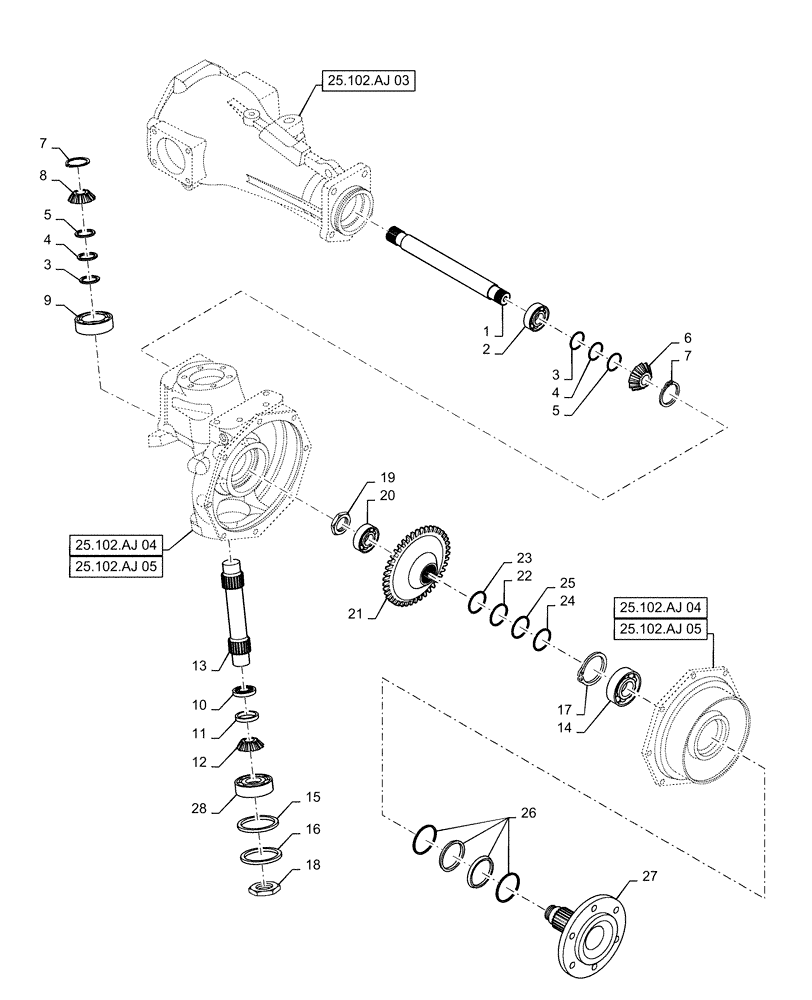

Запчасти Case IH FARMALL 40C (23.314.AH[02]) - FRONT DRIVE, FARMALL 40C, 50C (23) - FOUR WHEEL DRIVE SYSTEM

1

MT40009273

SHAFT,40mm OD x 408mm L

Front Diff

2шт.

2

MT40012720

BALL BEARING

2шт.

3

MT40012869

LINER

1шт.

4

MT40012870

LINER

1шт.

5

MT40012871

LINER

1шт.

6

MT40036065

GEAR

2шт.

7

MT40029273

SNAP RING,M30

4шт.

8

MT40036067

GEAR

2шт.

9

MT40007830

TAPERED BEARING,30mm ID x 62mm OD x 21.25mm

2шт.

10

MT40009716

THRUST BEARING,42mm ID x 55mm OD x 11.50mm L

2шт.

11

MT40010102

SPACER

2шт.

12

MT40036066

GEAR

2шт.

13

MT40009096

SHAFT,30mm OD x 226mm L

King Pin

2шт.

14

MT40012713

BALL BEARING

2шт.

15

MT40012427

LINER,73mm ID x 89mm OD x 0.1mm Thk

1шт.

16

MT40012428

LINER,73mm ID x 89mm OD x 0.2mm Thk

1шт.

17

MT40029304

SNAP RING,M90

2шт.

18

MT40009934

NUT,M25 x 1.5 Pitch, 10mm Thk

2шт.

19

MT40009906

NUT

2шт.

20

MT40012721

BALL BEARING

2шт.

21

MT40036080

GEAR

2шт.

22

MT40012123

LINER,49mm ID x 64mm OD x 0.50mm Thk

1шт.

23

MT40012124

LINER,49mm ID x 64mm OD x 0.60mm Thk

1шт.

24

MT40059311

LINER

1шт.

25

MT40012125

LINER,49mm ID x 64mm OD x 0.80mm Thk

1шт.

26

MT40007918

SEAL

Assy, Group

2шт.

27

MT40036082

SHAFT

Front Axle

2шт.

28

MT40010341

TAPERED BEARING

2шт.
