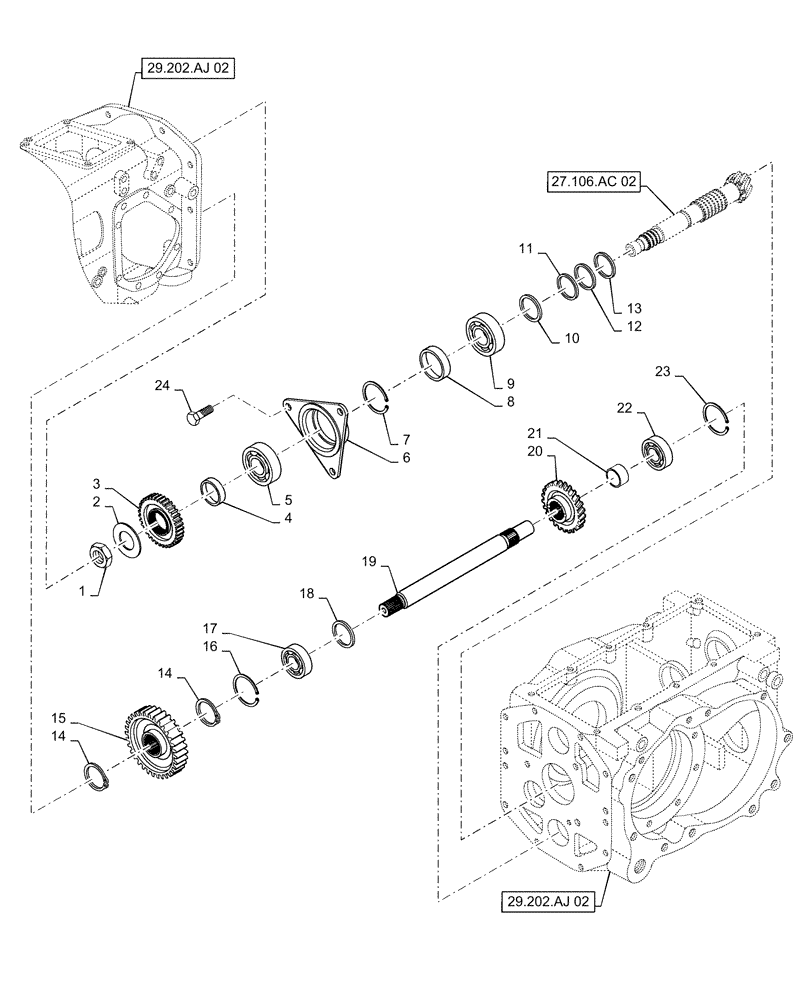

Запчасти Case IH FARMALL 40C (21.140.00[04]) - RANGE GEAR SHAFT, HST, FARMALL 40C, 50C (21) - TRANSMISSION

1

MT40009547

NUT,M40, 1.5mm Pitch

1шт.

2

MT40012127

WASHER,37.50mm ID x 70mm OD x 1.20mm

1шт.

3

MT40009807

GEAR,37.50mm ID x 98.10mm OD x 16mm W, 30T

Range Driven

1шт.

4

MT40010101

SPACER,40mm ID x 55mm OD x 15.50mm

Range Driven Shaft

1шт.

5

MT40012983

TAPERED BEARING

1шт.

6

MT40175296

HOLDER

Pinion Bearing

1шт.

7

MT40029304

SNAP RING,M90

1шт.

8

MT40009796

SPACER

1шт.

9

MT40012984

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm L

1шт.

10

MT40012828

LINER

1шт.

11

MT40012829

LINER

1шт.

12

MT40012947

LINER

1шт.

13

MT40009724

WASHER

Rear Pinion

1шт.

14

MT40029275

SNAP RING,M35

2шт.

15

MT40010132

GEAR

4WD Drive

1шт.

16

MT40029301

SNAP RING,M72

1шт.

17

MT40012709

BALL BEARING

1шт.

18

MT40009709

WASHER,35mm ID x 48mm OD x 2mm

1шт.

19

MT40009105

SHAFT,38mm OD x 346.5mm L

4WD Input

1шт.

20

MT40009806

GEAR,32.50mm ID x 98.10mm OD x 16mm W, 30T

Range Driven

1шт.

21

MT40010046

SPACER,30mm ID x 40mm OD x 22mm

1шт.

22

MT40012706

BALL BEARING

1шт.

23

MT40029299

SNAP RING,M62

1шт.

24

MT40028938

BOLT,Hex, M12 x 1.75 x 30mm

3шт.
