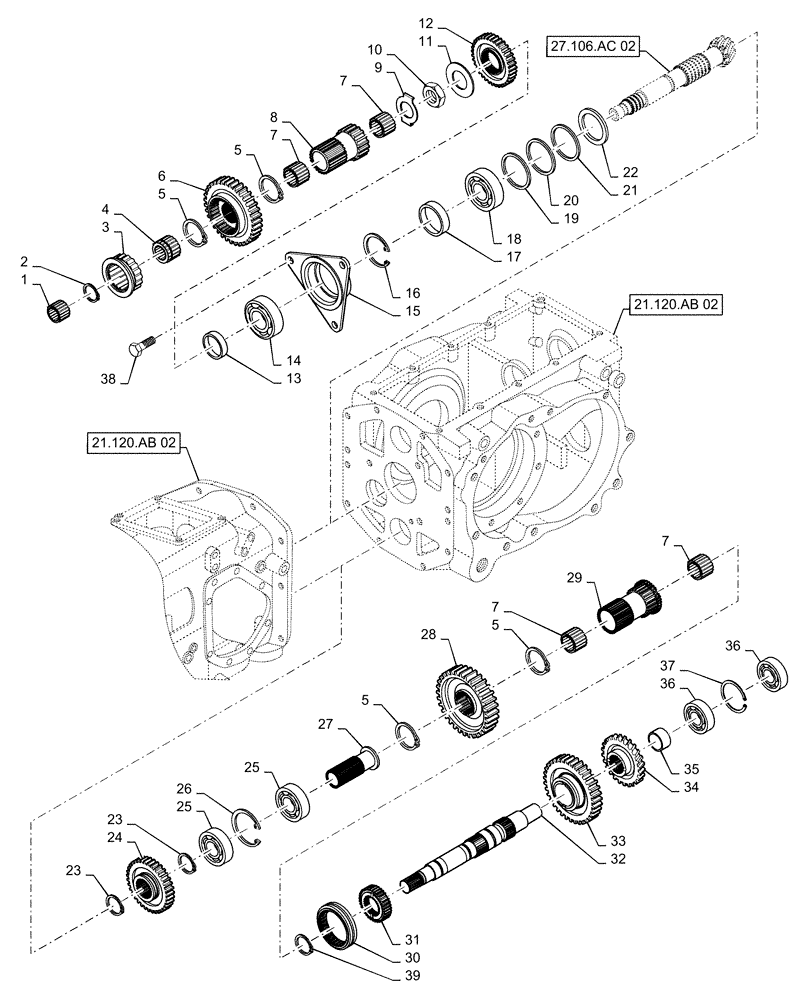

Запчасти Case IH FARMALL 40C (21.140.00[02]) - RANGE GEAR SHAFT, MECH, FARMALL 40C, 50C (21) - TRANSMISSION

1

MT40007812

NEEDLE BEARING,24mm ID x 31mm OD x 31mm

Needle Roller

1шт.

2

MT40029273

SNAP RING,M30

1шт.

3

MT40009137

GEAR,42.50mm ID x 71.60mm OD x 26.50mm

Range Selector

1шт.

4

MT40009707

HUB,27.50mm ID x 47.50mm OD x 32mm

Range, Second and Fourth

1шт.

5

MT40029280

SNAP RING,M50

4шт.

6

MT40009230

GEAR,46.70mm ID x 131.10mm OD x 24mm W

1шт.

7

MT40007818

NEEDLE BEARING,32mm ID x 37mm OD x 27mm

4шт.

8

MT40009287

GEAR,33.50mm ID x 64.50mm OD x 98mm

Range Drive Second

1шт.

9

MT40012301

THRUST WASHER,2.30mm Thk

1шт.

10

MT40009547

NUT,M40, 1.5mm Pitch

1шт.

11

MT40012127

WASHER,37.50mm ID x 70mm OD x 1.20mm

1шт.

12

MT40009807

GEAR,37.50mm ID x 98.10mm OD x 16mm W, 30T

Range Drive

1шт.

13

MT40010101

SPACER,40mm ID x 55mm OD x 15.50mm

1шт.

14

MT40012983

TAPERED BEARING

1шт.

15

MT40175296

HOLDER

Pinion Bearing

1шт.

16

MT40029304

SNAP RING,M90

1шт.

17

MT40009796

SPACER

1шт.

18

MT40012984

TAPERED BEARING,40mm ID x 90mm OD x 25.25mm L

1шт.

19

MT40012828

LINER

1шт.

20

MT40012829

LINER

1шт.

21

MT40012947

LINER

1шт.

22

MT40009724

WASHER

Rear Pinion

1шт.

23

MT40029275

SNAP RING,M35

2шт.

24

MT40010132

GEAR

4WD Drive

1шт.

25

MT40012709

BALL BEARING

2шт.

26

MT40029301

SNAP RING,M72

1шт.

27

MT40009120

SHAFT,22.50mm ID x 45mm OD x 95.50mm L

2WD Input

1шт.

28

MT40009615

GEAR,46.70mm ID x 137.10mm OD x 27mm, 44T

Range Driven

1шт.

29

MT40009134

GEAR,67.60mm OD x 116mm L, 19T

Range Drive First

1шт.

30

MT40009299

SLEEVE,64mm ID x 86mm OD x 23mm

Shift

1шт.

31

MT40009755

HUB,32.50mm ID x 68mm OD x 20mm W

Range, First and Third

1шт.

32

MT40009364

SHAFT,38mm OD x 335mm L

Range Counter

1шт.

33

MT40009231

GEAR,38mm ID x 131.20mm OD x 19.50mm W, 43T

Range Driven

1шт.

34

MT40009806

GEAR,32.50mm ID x 98.10mm OD x 16mm W, 30T

Range Driven

1шт.

35

MT40010046

SPACER,30mm ID x 40mm OD x 22mm

1шт.

36

MT40012706

BALL BEARING

2шт.

37

MT40029299

SNAP RING,M62

1шт.

38

MT40028938

BOLT,Hex, M12 x 1.75 x 30mm

3шт.

39

MT40029309

SNAP RING,M35

1шт.
