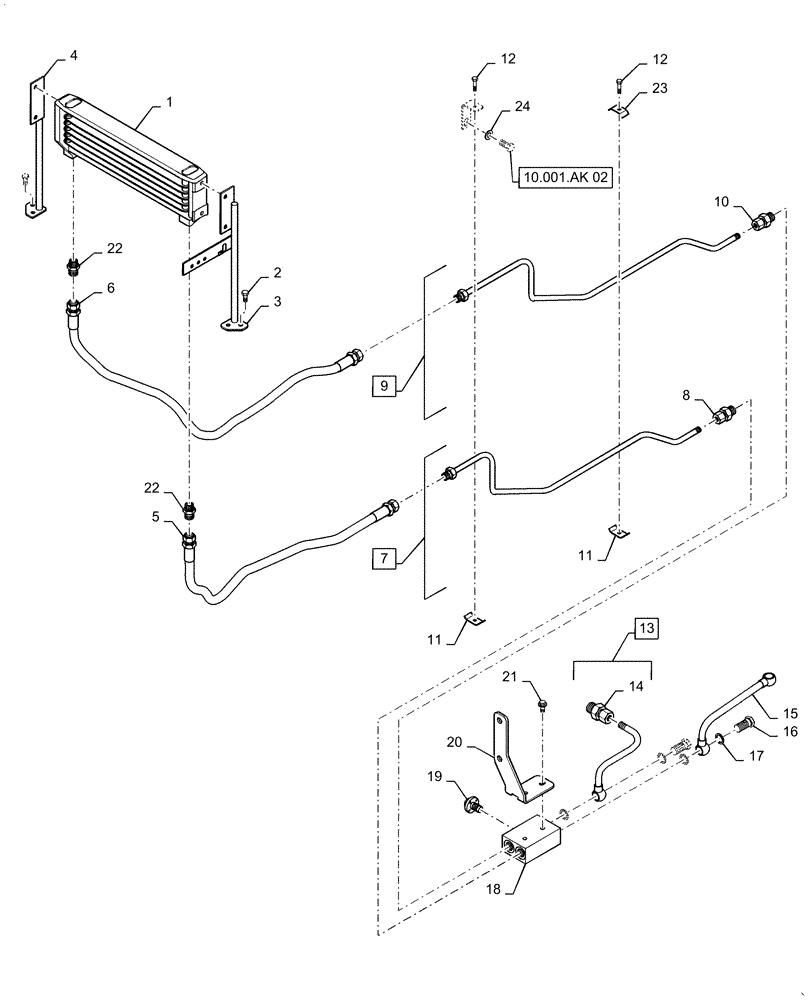

Запчасти Case IH FARMALL 40C (10.408.00[03]) - TRANSMISSION OIL COOLER, MECH, FARMALL 40C, 50C (10) - ENGINE

1

MT40266755

OIL COOLER

1шт.

2

MT40028921

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

MT40285206

SUPPORT

Cooler, LH, 3 Cyl

1шт.

4

MT40270371

SUPPORT

Cooler, RH, Tier 4

1шт.

5

MT40266760

HOSE

Cooler Out

1шт.

6

MT40266761

HOSE

Cooler In

1шт.

7

MT40295934

PIPE

Cooler In, Incl 8

1шт.

8

MT40009978

JOINT,12mm OD x 3/8”

1шт.

9

MT40295935

PIPE

Cooler Out, Incl 10

1шт.

10

MT40009978

JOINT,12mm OD x 3/8”

1шт.

11

MT40012307

PIPE CLAMP,2.3mm Thk

2шт.

12

MT40028968

BOLT,Hex, M6 x 1 x 30mm

2шт.

13

MT40287534

PIPE

Drain, Incl 14

1шт.

14

MT40009978

JOINT,12mm OD x 3/8”

1шт.

15

MT40287536

PIPE

PTO Drain, Mech

1шт.

16

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

2шт.

17

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

Bonded

4шт.

18

MT40150242

VALVE

Cooler, Incl 19 - 20

1шт.

19

MT40007884

VALVE,CHECK, 4.2 BAR

1шт.

20

MT40286471

BRACKET

Cooler Valve, Mech

1шт.

21

MT40028971

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

22

MT40010152

JOINT,3/8" x 3/8"

2шт.

23

MT40012306

CLAMP,2.3mm Thk

Pipe

1шт.

24

MT40028176

WASHER,M8 x 1.25mm x 30mm L

1шт.
