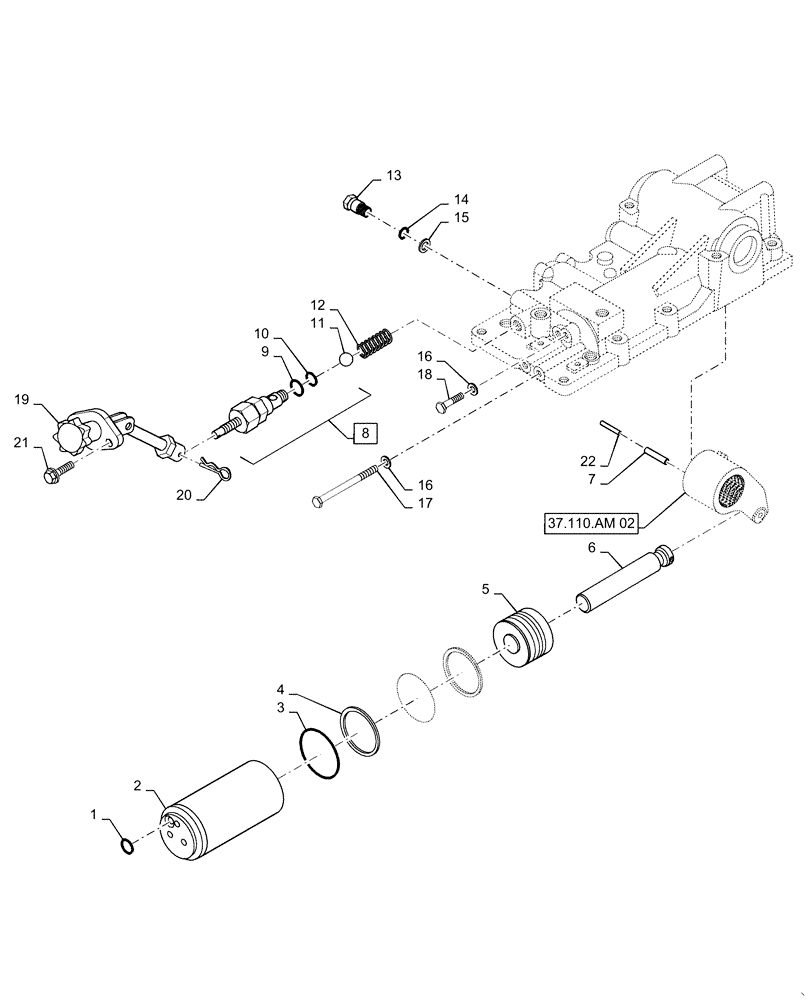

Запчасти Case IH FARMALL 40C (35.116.AH[02]) - REAR HITCH HYDRAULIC CYLINDER, FARMALL 40C, 50C (35) - HYDRAULIC SYSTEMS

1

MT40029202

O-RING,2.4mm Thk x 13.8mm ID

1шт.

2

MT40011329

CYLINDER,80mm ID x 190mm L

Hydraulic

1шт.

3

MT40007433

O-RING,5.7mm Thk x 69.6mm ID

Hydr Piston

2шт.

4

MT40012134

RING,70mm ID x 80mm OD x 3mm Thk

Back Up

2шт.

5

MT40009770

PISTON,80mm OD x 53mmL

1шт.

6

MT40221734

ROD,32mm OD x 183.5mm L

1шт.

7

MT40029181

PIN,8mm OD x 55mm L

Spring

1шт.

8

MT40008115

VALVE

Regulator

1шт.

9

MT40029202

O-RING,2.4mm Thk x 13.8mm ID

1шт.

10

MT40029195

O-RING,1.9mm Thk x 9.8mm ID

1шт.

11

MT40010340

BALL

Steel

1шт.

12

MT40012356

SPRING,8.6mm OD x 31.5mm L

Locking Valve

1шт.

13

MT40008161

VALVE

Safety

1шт.

14

MT40029206

O-RING,2.40mm Thk x 17.80mm ID

1шт.

15

MT40012093

SEAL,10.5mm ID x 18mm OD x 1.0 Thk

Plug

1шт.

16

MT40273321

SEAL

Bonded

3шт.

17

MT40272750

BOLT,M10 x 1.25 x 120mm L

2шт.

18

MT40273203

BOLT,M10 x 1.25 x 120mm L

1шт.

19

MT40008136

KNOB

Speed

1шт.

20

MT40029135

PIN,M16

1шт.

21

MT40028967

BOLT,Hex, M6 x 1 x 25mm

2шт.

22

MT40029166

PIN,5mm OD x 55mm L

Spring, Years: -10-SEP-16

1шт.
