Запчасти Case IH FARMALL 40C (88.040.AA) - DIA KIT, REAR WHEEL, WEIGHT (88) - ACCESSORIES

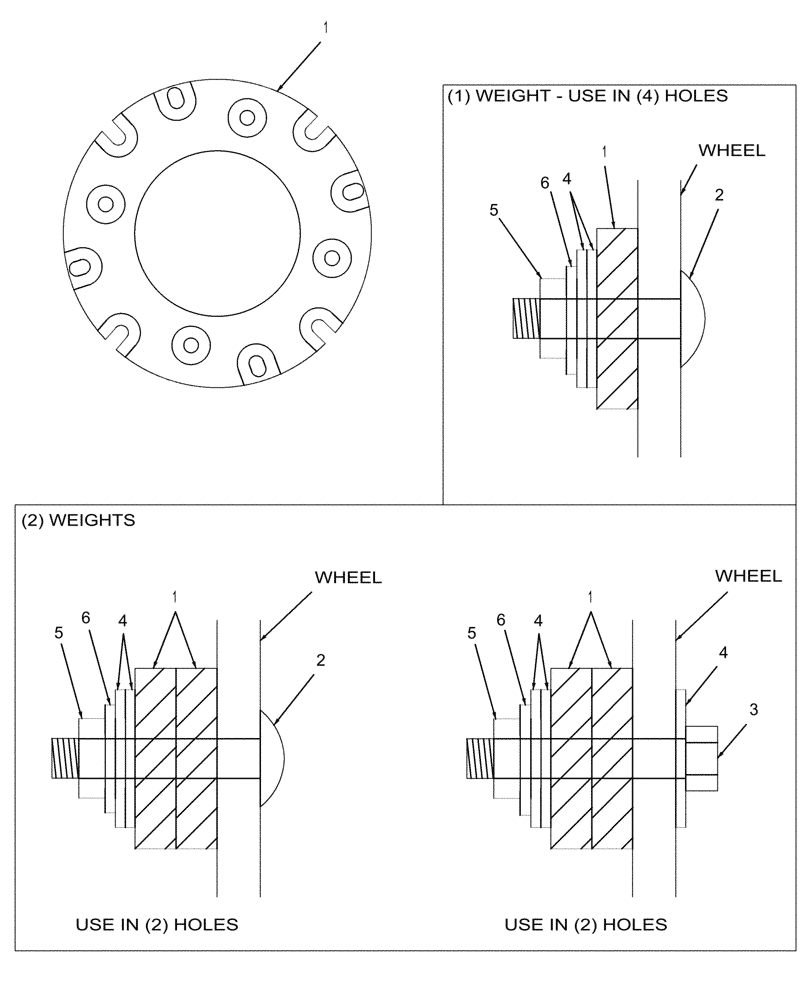

Схема запчастей Case IH FARMALL 40C - (88.040.AA) - DIA KIT, REAR WHEEL, WEIGHT (88) - ACCESSORIES
wheel
(1) weight - use in (4) holes
5
6
wheel
1
use in (2) holes
4
5
1
4
(2) weights
6
1
6
3
2
5
wheel
1
4
use in (2) holes
2
4

Артикул

Название

Примечание

Количество

1

710470026

WHEEL WEIGHT

Rear, 105 Lbs, AG & Industrial Bar, Serial Range: -`0

1шт.

Max of 2 per Wheel, Ag & Industrial Bar

1шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(1) Weight Per Wheel

4шт.

2

280563

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 3 1/2", Gr 5

Used W/(2) Weight Per Wheel

2шт.

3

280293

BOLT,Hex, 5/8" - 11 x 7", Gr 5

Used With (2) Weights Per Wheel

4шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Used with (1) Weight per Wheel

8шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

Used with (2) Weights per Wheel

10шт.

5

280374

NUT,Hex, 5/8" - 11, Gr 5

Use (4) w/Both (1) & (2) Weights Per Wheel

4шт.

6

86729275

LOCK WASHER,5/8 0.634 CST ZND

Use (4) With Both (1) & (2) Weights Per Wheel

4шт.

Выбрано товаров: 9
