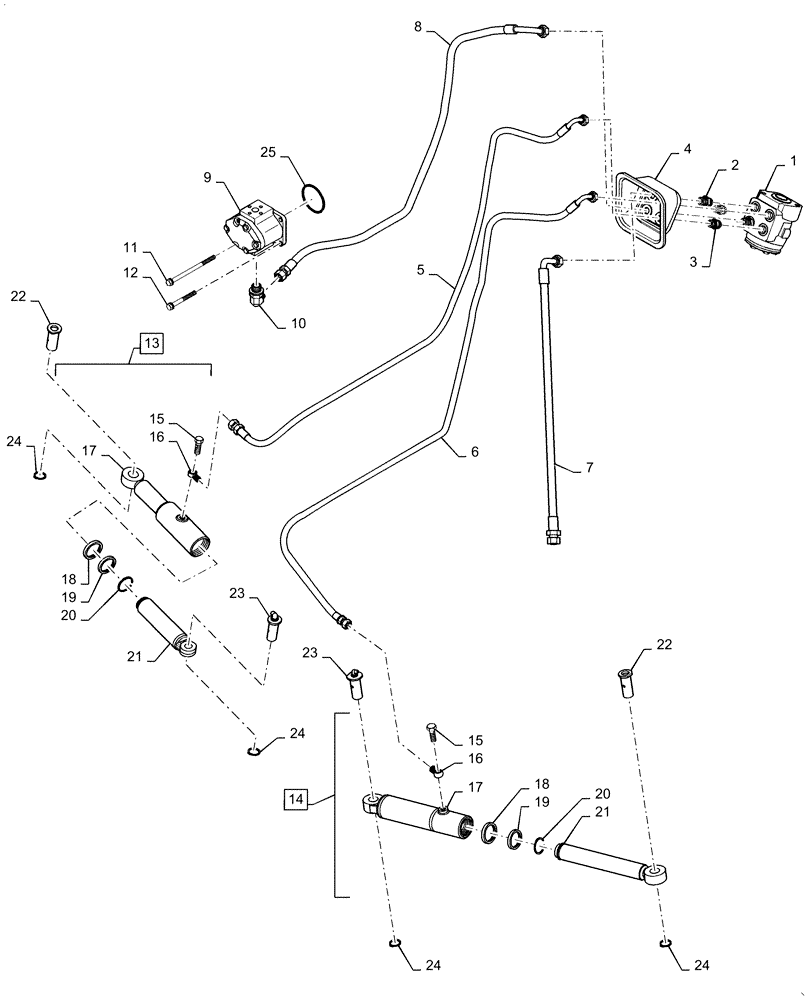

Запчасти Case IH FARMALL 40C (41.216.AN[04]) - STEERING CYLINDER, STEERING LINE, HST, FARMALL 40C, 50C (41) - STEERING

1

MT40200338

STEERING VALVE

Strg Unit, Normal

1шт.

2

MT40010152

JOINT,3/8" x 3/8"

1шт.

3

MT40010149

JOINT,3/8" x 1/4"

2шт.

4

MT40007310

COVER

Strg Hose

1шт.

5

MT40266752

HOSE,1/4"

Strg Cylinder, RH

1шт.

6

MT40266751

HOSE,1/4" x 1860mm L

Strg Cylinder, LH

1шт.

7

MT40243624

HOSE

Strg Drain

1шт.

8

MT40266753

HOSE,3/8” x 1080mm L

Strg Press

1шт.

9

MT40265895

PUMP

Strg

1шт.

10

MT40265900

ELBOW

Hose

1шт.

11

MT40266095

BOLT

2шт.

12

MT40028932

BOLT,Hex, M8 x 1.25 x 75mm

2шт.

13

MT40007986

STEERING ASSY,40mmm ID x 181mm L

Assy, RH, Incl 15 - 21

1шт.

14

MT40008014

STEERING ASSY

Assy, LH, Incl 15 - 21

1шт.

15

MT40009527

BOLT,M12 x 1.75 x 27mm L

Union

1шт.

16

MT40009814

ADAPTER

Cylinder Port

1шт.

17

MT40008038

PIPE,40mm ID

Assy, Cylinder

1шт.

18

MT40007271

GASKET,35mm ID x 45mm OD x 6mm Thk

U

1шт.

19

MT40007269

SEAL,35mm ID x 43mm OD x 6mm Thk

Dust

1шт.

20

MT40011318

RING,32.2mm OD x 2.6mm Thk

1шт.

21

MT40011319

ACCESSORIES

Ram

1шт.

22

MT40009475

PIN,20mm OD x 59mm L

Strg Cyl, Includes Grease Zerk

2шт.

23

MT40009476

PIN,20mm OD x 59mm L

Strg Cyl, Includes Grease Zerk

2шт.

24

MT40029266

SNAP RING,M20

4шт.

25

MT40029225

O-RING,3.1 Thk x 59.4mm ID

1шт.
