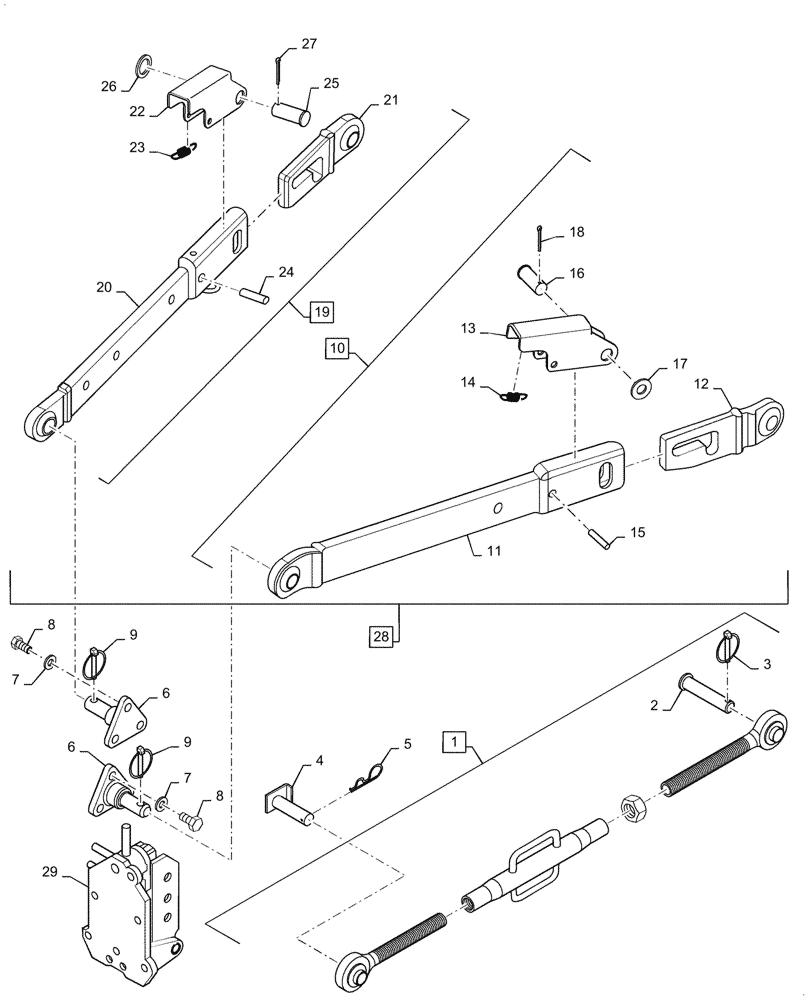

Запчасти Case IH FARMALL 40C (37.120.AO[03]) - LINK, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40008084

TOP LINK

Assy, W/ Pin, Incl 2 - 3

1шт.

2

MT40010207

PIN,19mm OD x 99mm L

Upper Link

1шт.

3

MT40012410

PIN,11mm OD x 50mm L

Link

1шт.

4

MT40012529

PIN,19mm OD 90mm L

Top Link Front

1шт.

5

MT40011979

PIN,20mm OD x 80mm L

1шт.

6

MT40010160

PIN

Lower Link

2шт.

7

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring

6шт.

8

MT40029395

BOLT,Hex, M14 x 2 x 35mm

6шт.

9

MT40012410

PIN,11mm OD x 50mm L

Link

2шт.

10

MT40251381

LOWER LINK

Assy, LH, Incl 11 - 18

1шт.

11

MT40251383

LOWER LINK

Left

1шт.

12

MT40227146

LIFT LINK END ASSY

Lower Left

1шт.

13

MT40227147

COVER

Lower Link

1шт.

14

MT40227145

SPRING

Lower Link

1шт.

15

MT40116303

PIN,10mm OD x 50mm L

Spring

1шт.

16

MT40227144

LOCK PIN

Lower

1шт.

17

MT40086650

WASHER,23mm OD x 3mm Thk

Plain

1шт.

18

MT40114756

COTTER PIN,M50 x 36mm L

1шт.

19

MT40251380

LOWER LINK

Assy, RH, Incl 20 - 27

1шт.

20

MT40251382

LOWER LINK

Lower Right

1шт.

21

MT40228102

LIFT LINK END ASSY

Lower Right

1шт.

22

MT40227147

COVER

Lower Link

1шт.

23

MT40227145

SPRING

Lower Link

1шт.

24

MT40116303

PIN,10mm OD x 50mm L

Spring

1шт.

25

MT40227144

LOCK PIN

Lower

1шт.

26

MT40086650

WASHER,23mm OD x 3mm Thk

Plain

1шт.

27

MT40114756

COTTER PIN,M50 x 36mm L

1шт.

28

MT20117609

DIA KIT, TRACTOR

Inc. 10-27

1шт.

29

MT40008053

BRACKET

1шт.
