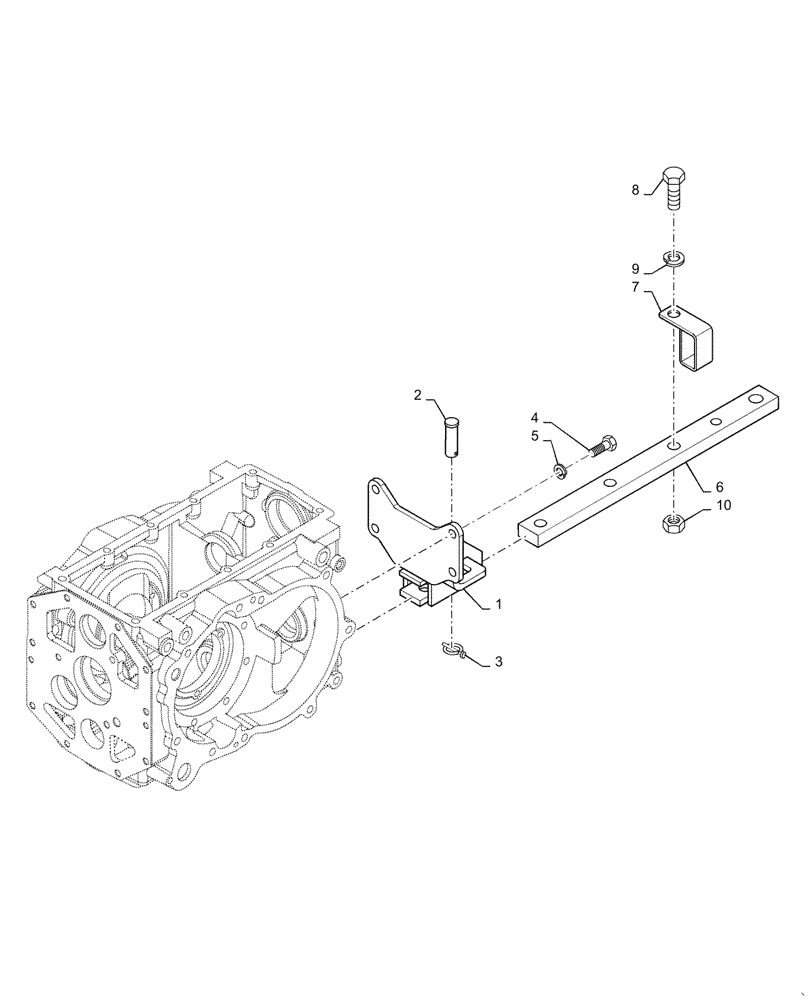

Запчасти Case IH FARMALL 40C (37.100.AA[02]) - DRAWBAR AND HITCH, FARMALL 40C, 50C (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40239964

DRAWBAR SUPPORT

Drawbar

1шт.

2

MT40242861

PIN,25mm OD x 77mm L

Drawbar

1шт.

3

MT40242876

PIN

1шт.

4

MT40029395

BOLT,Hex, M14 x 2 x 35mm

4шт.

5

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Spring

4шт.

6

MT40008966

DRAWBAR,50mm x 30mm Thk 623mm L

Hitch

1шт.

7

MT40232319

BRACKET

Chain Support

1шт.

8

MT40076191

BOLT,Hex, M20 x 2.5 x 60mm

1шт.

9

MT40029558

WASHER,20.20mm ID x 33.80mm OD x 5.10mm

Spring

1шт.

10

MT40028773

NUT,Hex, M20 x 2.5

1шт.
