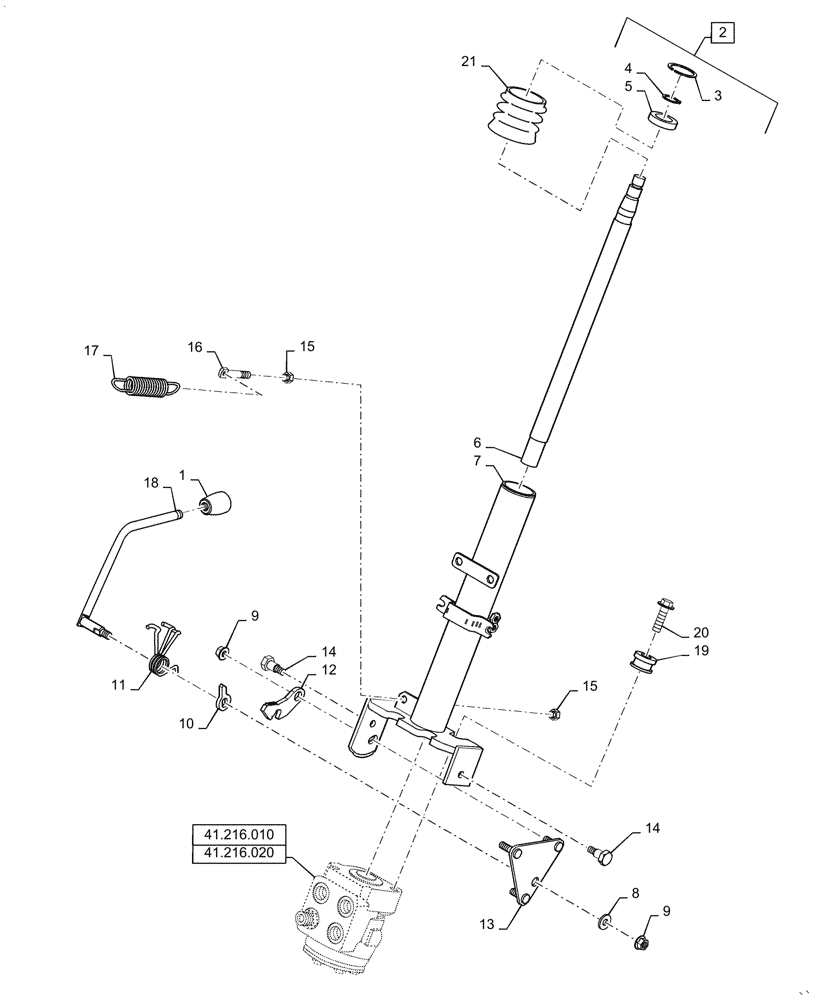

Запчасти Case IH FARMALL 40C (41.101.010) - STEERING COLUMN (41) - STEERING

1

MT40269141

KNOB

Tilt

1шт.

2

MT40268327

STEERING COLUMN

Assembly, Cab, Incl 3 - 7

1шт.

3

MT40029293

SNAP RING,M37

1шт.

4

MT40029265

SNAP RING,M20

1шт.

5

MT40012932

BALL BEARING,20mm ID x 37mm OD x 9mm W

1шт.

6

MT40276126

SHAFT

Strg Column, Cab

1шт.

7

MT40268329

STEERING COLUMN

Cab

1шт.

8

MT40276293

SPACER,2.3mm Thk

Tilt Lever

1шт.

9

MT40029075

FLANGE NUT,Hex, M8 x 1.25

4шт.

10

MT40268332

LINK

Lock Gear

1шт.

11

MT40268334

SPRING

Torsion

1шт.

12

MT40299538

GEAR

Lock

1шт.

13

MT40268330

GUIDE

Tilt Link

1шт.

14

MT40009511

BOLT,M10 x 1.25 x 13mm

Tilting Hinge

3шт.

15

MT40029040

NUT,Hex, M8 x 1.25

2шт.

16

MT40012133

BOLT,8mm OD

Adjust

1шт.

17

MT40268335

SPRING

Strg Tilt

1шт.

18

MT40268333

LEVER

Strg Tilt

1шт.

19

MT40259764

MOUNT

Strg Column

4шт.

20

MT40028982

BOLT,Hex, M10 x 1.5 x 35mm

4шт.

21

MT40007532

COVER,52mm ID, Rubber

1шт.
