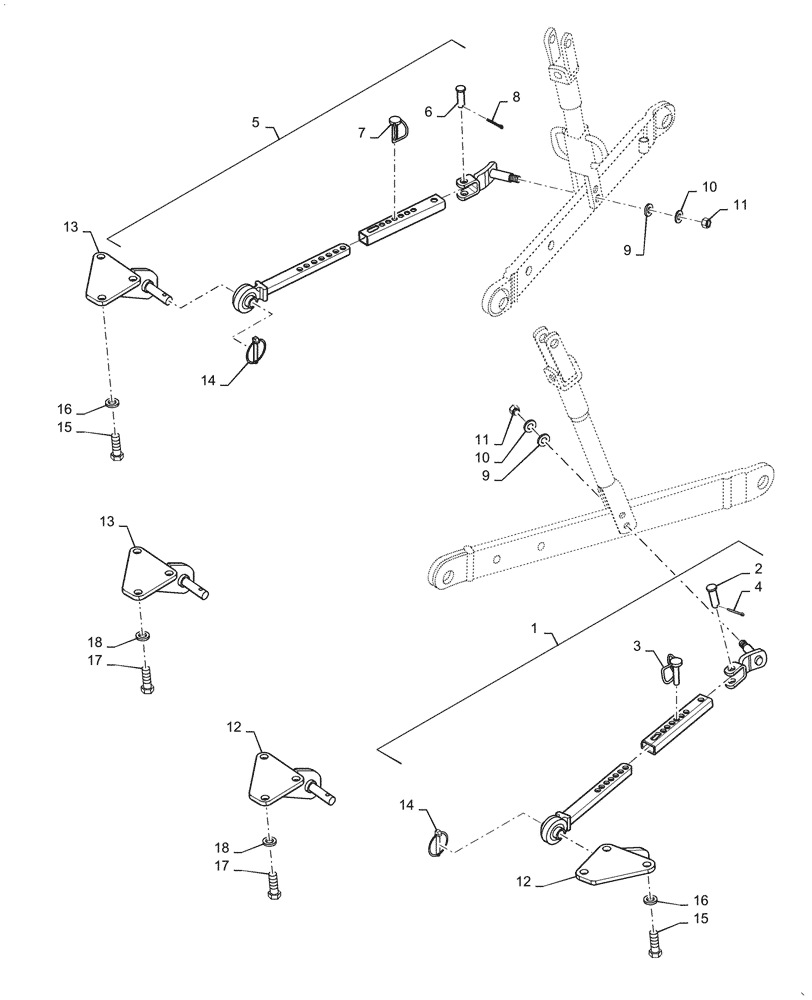

Запчасти Case IH FARMALL 40C (37.100.030) - DRAWBAR, LINK, BALL TYPE (37) - HITCHES, DRAWBARS & IMPLEMENT COUPLINGS

1

MT40270996

STABILIZER

Assy, Incl 2 - 4

1шт.

2

MT40036102

PIN,17mm OD x 40mm L

1шт.

3

MT40279936

PIN

1шт.

4

MT40036103

PIN,4mm OD x 25mm L

1шт.

5

MT40282087

STABILIZER

Assy, Incl 6 - 8

1шт.

6

MT40036102

PIN,17mm OD x 40mm L

1шт.

7

MT40279936

PIN

1шт.

8

MT40036103

PIN,4mm OD x 25mm L

1шт.

9

MT40028172

WASHER,13mm ID x 24mm OD x 2.5mm Thk

2шт.

10

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

2шт.

11

MT40029049

NUT,Hex, M12 x 1.25 Pitch

2шт.

12

MT40335740

BRACKET,130mm x 110mm x 92mm

LH, ROPS

1шт.

12

MT40344019

BRACKET

LH, Cab

1шт.

13

MT40335739

BRACKET,130mm x 110mm x 92mm

RH, ROPS

1шт.

13

MT40344020

BRACKET

RH, Cab

1шт.

14

MT40012410

PIN,11mm OD x 50mm L

2шт.

15

MT40029395

BOLT,Hex, M14 x 2 x 35mm

Cab

6шт.

16

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

Cab

6шт.

17

MT40029401

BOLT,Hex, M14 x 2 x 50mm

ROPS

6шт.

18

MT40029553

WASHER,14.20mm ID x 24.50mm OD x 3.50mm Thk

ROPS

6шт.
