(33.110.020) - PARKING BRAKE, LEVER, HST TRANSMISSION

Запчасти Case IH FARMALL 40C (33.110.020) - PARKING BRAKE, LEVER, HST TRANSMISSION (33) - BRAKES & CONTROLS

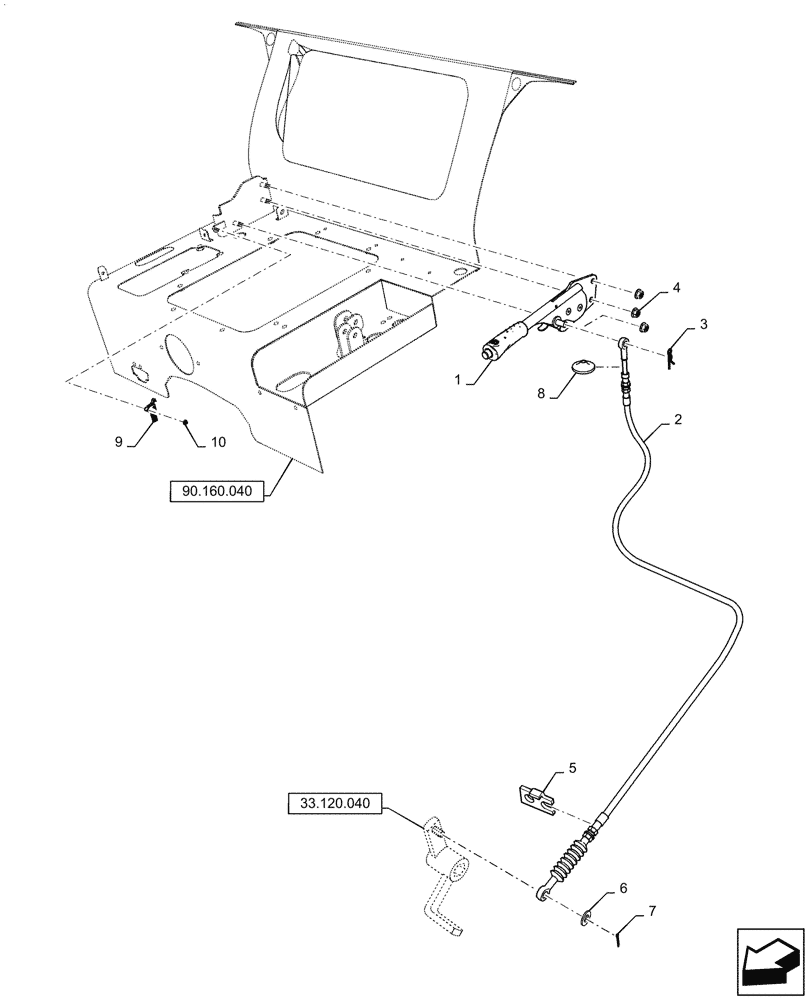

Схема запчастей Case IH FARMALL 40C - (33.110.020) - PARKING BRAKE, LEVER, HST TRANSMISSION (33) - BRAKES & CONTROLS
33.120.040
10
6
1
2
5
4
7
9
3
8
90.160.040
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40254845

LEVER

Assy

1шт.

2

MT40268847

WIRE

Park Brake, HST

1шт.

3

MT40029132

HAIR PIN COTTER,M10

1шт.

4

MT40029075

FLANGE NUT,Hex, M8 x 1.25

3шт.

5

MT40011903

BRACKET,4.5mm Thk

Park Brake, Wire

1шт.

6

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

MT40029121

PIN,25mm OD x 20mm L

Split

1шт.

8

MT40030703

GROMMET

1шт.

9

MT40258187

SWITCH

Micro

1шт.

10

MT40029071

FLANGE NUT,Hex, M4 x 0.7

M4 x 0.7

1шт.
