(33.110.010) - PARKING BRAKE, LEVER, MECHANICAL TRANSMISSION

Запчасти Case IH FARMALL 40C (33.110.010) - PARKING BRAKE, LEVER, MECHANICAL TRANSMISSION (33) - BRAKES & CONTROLS

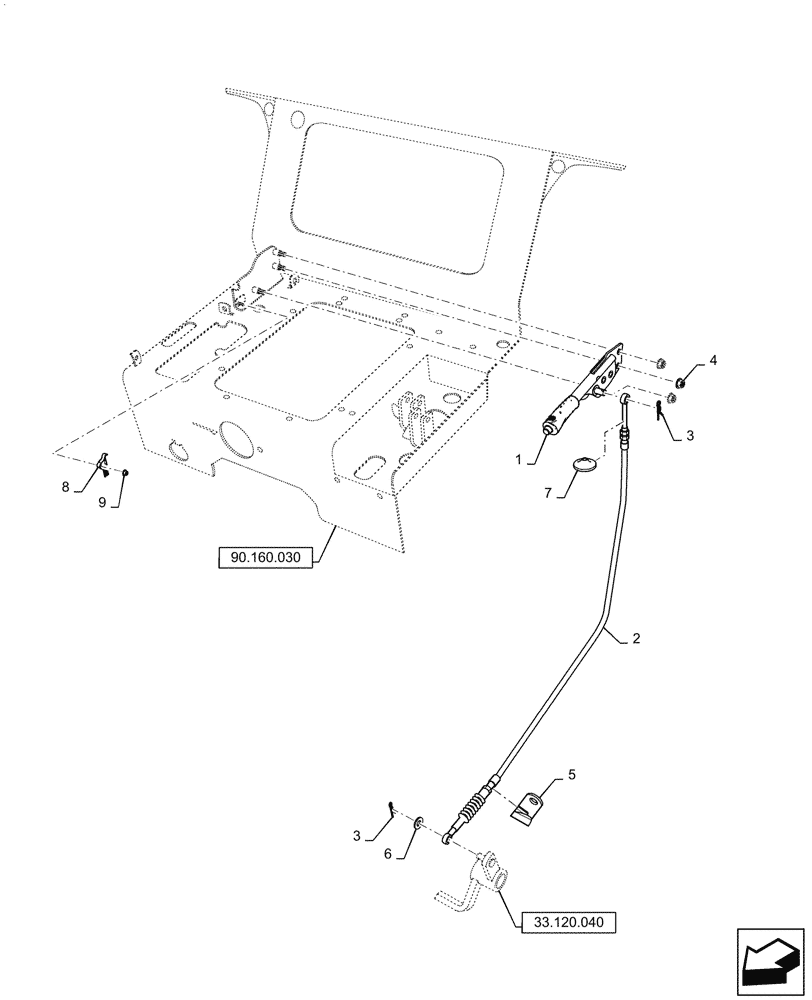

Схема запчастей Case IH FARMALL 40C - (33.110.010) - PARKING BRAKE, LEVER, MECHANICAL TRANSMISSION (33) - BRAKES & CONTROLS
33.120.040
9
8
6
5
3
2
7
4
3
1
90.160.030
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40254845

LEVER

Assy

1шт.

2

MT40255077

WIRE

Parking Prake, Mechanical

1шт.

3

MT40029132

HAIR PIN COTTER,M10

2шт.

4

MT40029075

FLANGE NUT,Hex, M8 x 1.25

3шт.

5

MT40011904

BRACKET,4.5mm Thk

Park Brake Wire

1шт.

6

MT40028171

WASHER,10.5mm ID x 21mm OD x 2mm Thk

1шт.

7

MT40030703

GROMMET

1шт.

8

MT40258187

SWITCH

Micro

1шт.

9

MT40029071

FLANGE NUT,Hex, M4 x 0.7

1шт.
