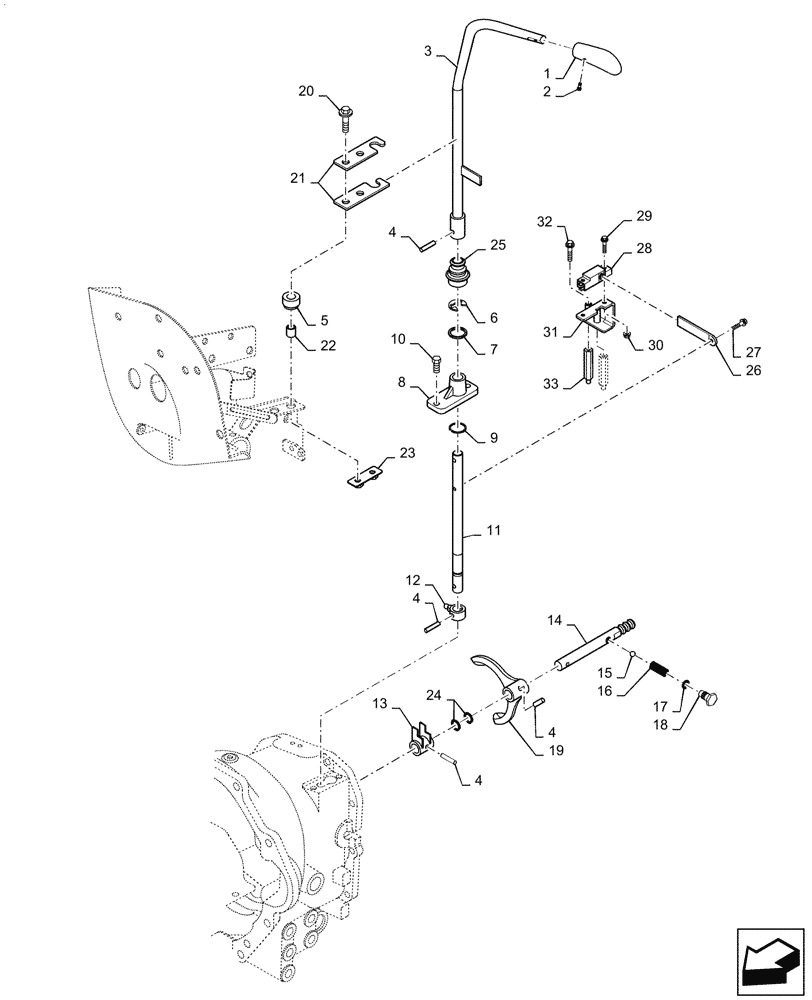

Запчасти Case IH FARMALL 40C (21.140.070) - SHIFTER FORK - FORWARD & REVERSE, MECHANICAL TRANSMISION (21) - TRANSMISSION

1

MT40229664

KNOB

1шт.

2

MT40029019

SCREW,M5 x 0.8 x 10mm

1шт.

3

MT40292504

LEVER

1шт.

4

MT40270937

PIN,6mm OD x 24mm L

4шт.

5

MT40007406

MOUNT,14mm ID x 20mm OD x 2mm Thk

Pedal

2шт.

6

MT40029321

SNAP RING,M15

1шт.

7

MT40028178

WASHER,17mm ID x 30mm OD x 3mm Thk

1шт.

8

MT40032414

BOSS

1шт.

9

MT40029261

SNAP RING,M16

1шт.

10

MT40028923

BOLT,Hex, M8 x 1.25 x 25mm

2шт.

11

MT40263918

CONTROL LEVER,16mm OD x 266mm L

1шт.

12

MT40010262

ARM

M/Shift 1

1шт.

13

MT40010329

ADAPTER

M/Shift 3-4

1шт.

14

MT40009622

RAIL ASSY.,16mm OD x 163mm L

1шт.

15

MT40010339

BALL

Shift Fork

1шт.

16

MT40011943

SPRING,7.2mm OD x 22mm L

1шт.

17

MT40029203

O-RING,2.40mm Thk x 14.8mm OD

1шт.

18

MT40010268

BOLT

1шт.

19

MT40010309

FORK

M/Shift 3-4

1шт.

20

MT40029011

BOLT,M8 x 1.25 x 40mm

2шт.

21

MT40012324

LEVER GUIDE

2шт.

22

MT40009979

SPACER,9.2mm ID x 13.8mm OD x 18mm L

2шт.

23

MT40012238

PLATE

Lock

1шт.

24

MT40029204

O-RING,2.4mm Thk x 15.8mm OD

2шт.

25

MT40279802

COVER

1шт.

26

MT40263917

PLATE

Target

1шт.

27

MT40028992

BOLT,Hex, M5 x 0.8 x 16mm

1шт.

28

MT40264222

SWITCH

Proximity

1шт.

29

MT40094801

BOLT,M5 x .8 x 30mm L

2шт.

30

MT40029072

FLANGE NUT,M5 x 0.8

2шт.

31

MT40263916

BRACKET

Neutral Switch

1шт.

32

MT40028914

BOLT,Hex, M6 x 1 x 35mm

2шт.

33

MT40293158

SUPPORT

Neutral Switch

2шт.
