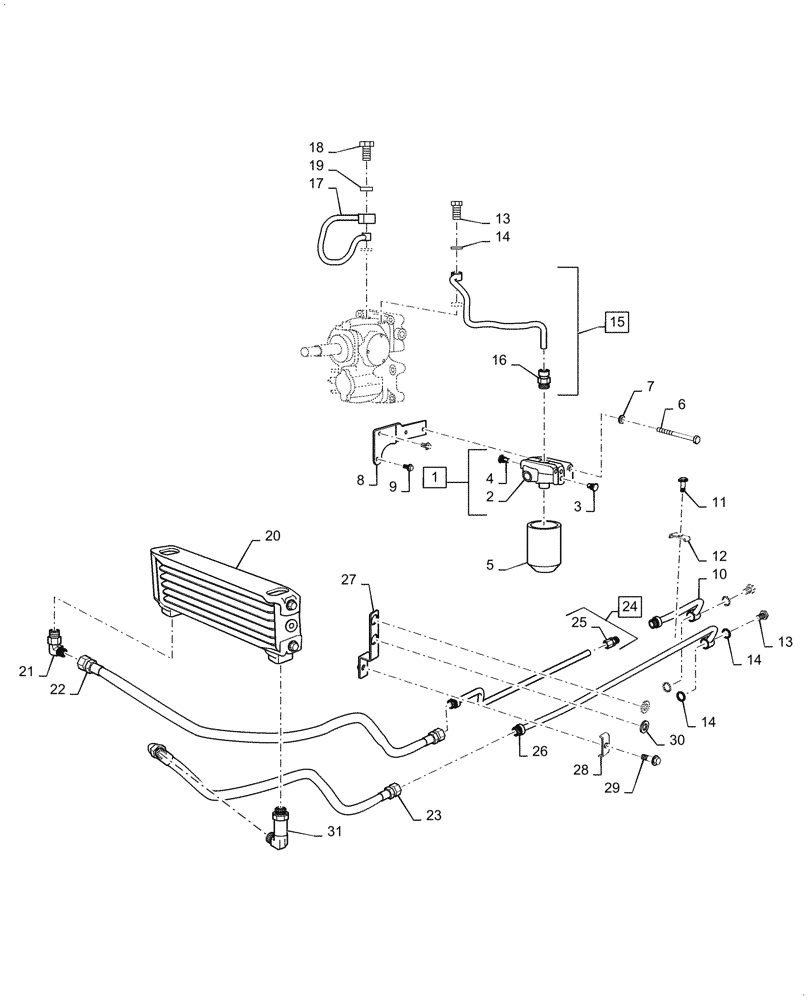

Запчасти Case IH FARMALL 40C (21.109.010) - OIL COOLER, HYDROSTATIC TRANSMISSION (21) - TRANSMISSION

1

MT40007999

FLANGE

Assy Filter, Incl 2 - 4

1шт.

2

MT40008928

FLANGE

Filter

1шт.

3

MT40007882

VALVE,CHECK, 2.0 BAR

1шт.

4

MT40007884

VALVE,CHECK, 4.2 BAR

1шт.

5

MT40007563

FILTER

Hydraulic

1шт.

6

MT40029437

BOLT,M10 x 1.5 x 120mm

2шт.

7

MT40029549

WASHER,10.20mm ID x 18.40mm OD x 2.50mm Thk

2шт.

8

MT40292140

BRACKET

Filter

1шт.

9

MT40028936

BOLT,M10 x 1.5 x 20mm

2шт.

10

MT40292142

PIPE

1шт.

11

MT40028968

BOLT,Hex, M6 x 1 x 30mm

1шт.

12

MT40012306

CLAMP,2.3mm Thk

1шт.

13

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

3шт.

14

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

6шт.

15

MT40292146

PIPE

Assy Incl 16

1шт.

16

MT40009977

JOINT,12mm OD x 1/2"

1шт.

17

MT40011559

PIPE,15mm OD x 1.5mm Thk

HST Out

1шт.

18

MT40010250

BOLT,Union 1/2" x 36mm L

1шт.

19

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

2шт.

20

MT40323120

COOLER

Oil

1шт.

21

MT40010150

JOINT,3/8" x 3/8"

1шт.

22

MT40280876

HOSE

Cooler In

1шт.

23

MT40298657

FUEL HOSE

Cooler Out

1шт.

24

MT40350957

PIPE

Assy Incl 25, Cooler In

1шт.

25

MT40009978

JOINT,12mm OD x 3/8”

1шт.

26

MT40350958

PIPE

Cooler Out

1шт.

27

MT40352542

BRACKET

Pipe Cooler

1шт.

28

MT40266090

PIPE CLAMP

1шт.

29

MT40028974

SCREW,M8 x 1.25 x 30mm L

1шт.

30

MT40028176

WASHER,M8 x 1.25mm x 30mm L

2шт.

31

MT40318956

90 ELBOW,3/8” x 3/8”

1шт.
