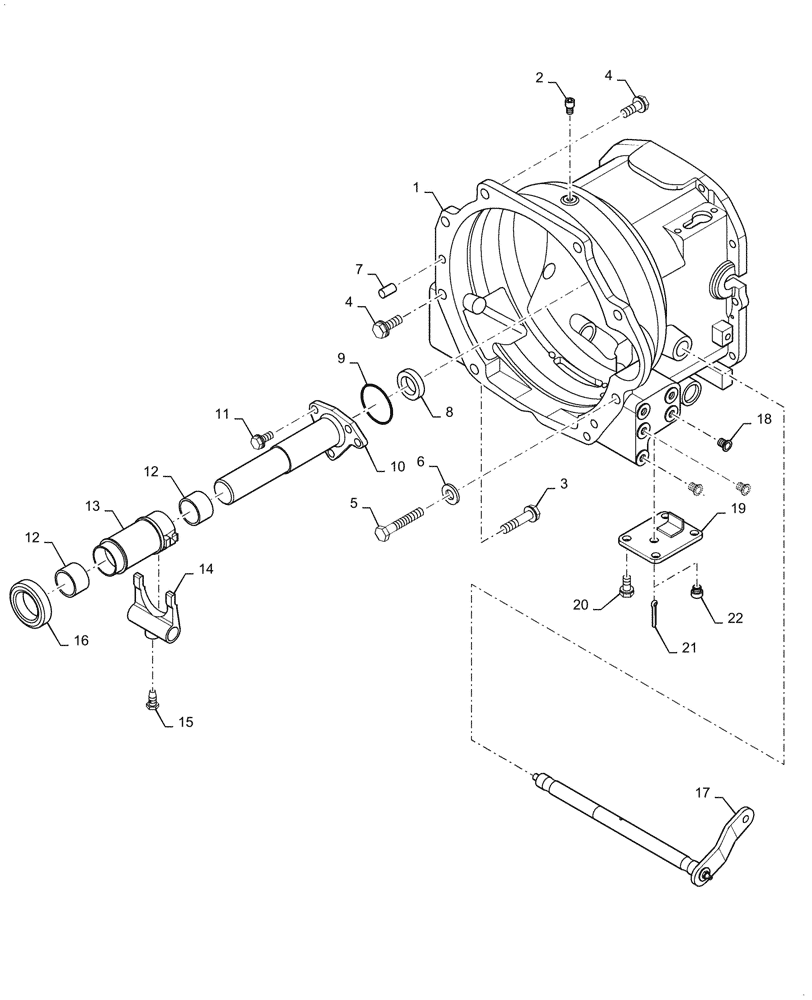

Запчасти Case IH FARMALL 40C (18.100.020) - CLUTCH HOUSING, MECHANICAL TRANSMISSION (18) - CLUTCH

1

MT40010345

CLUTCH HOUSING

1шт.

2

MT40009792

PLUG,9.50mm OD x 7.50mm L

1шт.

3

MT40028943

BOLT,M12 x 1.75 x 60mm

2шт.

4

MT40028940

BOLT,Hex, M12 x 1.75 x 40mm

5шт.

5

MT40029391

BOLT,M12 x 1.75 x 90mm

1шт.

6

MT40029551

WASHER,12.20mm ID x 21.50mm OD x 3mm Thk

1шт.

7

MT40029102

PIN,M10 x 20mm L

2шт.

8

MT40285407

OIL SEAL,30mm ID x 45mm OD x 8mm Thk

1шт.

9

MT40029252

O-RING,59.50mm OD x 2mm Thk

1шт.

10

MT40268211

COVER

Main Shaft

1шт.

11

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

3шт.

12

MT40007822

BUSHING,38mm ID x 42mm OD x 30mm L

2шт.

13

MT40266236

HUB

Release Bearing

1шт.

14

MT40010337

LEVER

Clutch Shift

1шт.

15

MT40010190

BOLT,M12 x 1.25

1шт.

16

MT40007837

BEARING,45mm ID x 73.6mm OD x 18mm L

1шт.

17

MT40011611

SHAFT

Clutch Lever

1шт.

18

MT40007322

PLUG,13mm L, Rubber

6шт.

19

MT40012220

COVER

Housing

1шт.

20

MT40028947

BOLT,Hex, M10 x 1.25 x 20mm

8шт.

21

MT40012217

PIN

Split

1шт.

22

MT40007354

DRAIN PLUG,12mm OD x 12mm L

1шт.
