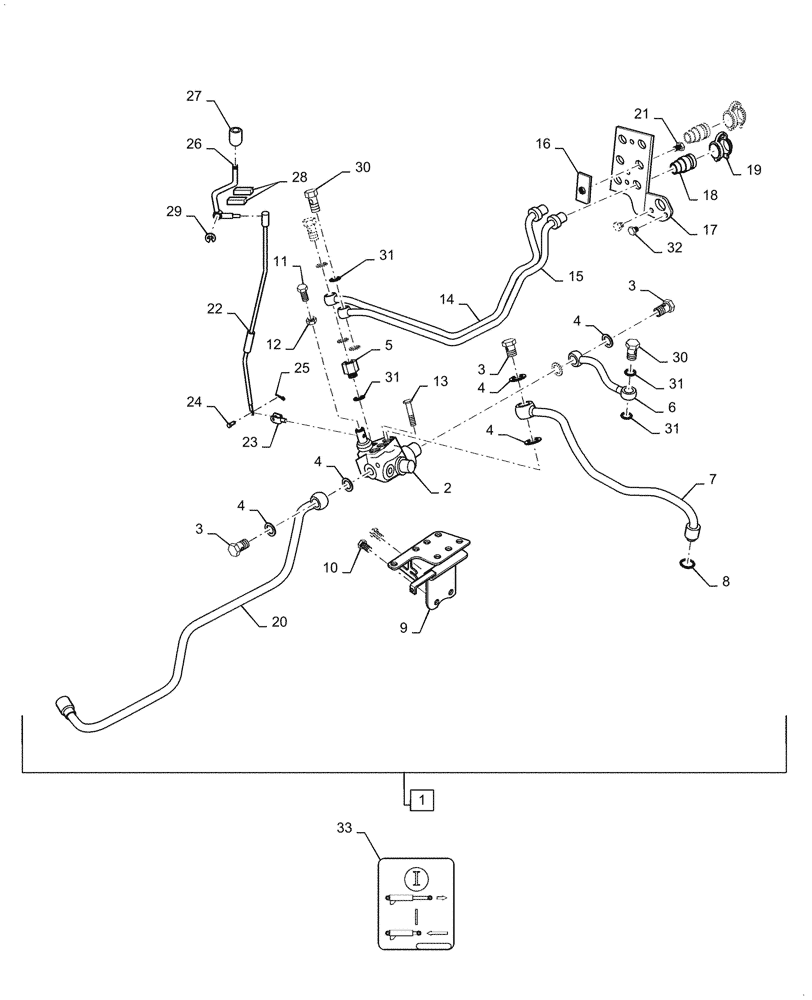

Запчасти Case IH FARMALL 40C (88.035.010[01]) - DIA KIT, REMOTE CONTROL VALVE (88) - ACCESSORIES

1

MT20144548

Kit, Incl 2 - 32

REMOTE CONTROL VALVE

1шт.

2

MT40350715

HYDRAULIC VALVE

Detent

1шт.

3

MT40010250

BOLT,Union 1/2" x 36mm L

3шт.

4

MT40012096

SEAL,1.5mm Thk x 21.2mm ID

6шт.

5

MT40010251

HYD CONNECTOR,22mm ID x 3/8” OD x 11X40L

1шт.

6

MT40350721

PIPE

R/Pressure

1шт.

7

MT40350822

PIPE

Drain

1шт.

8

MT40029199

O-RING,2.40mm Thk x 11.80mm ID

1шт.

9

MT40330659

BRACKET

1шт.

10

MT40028948

BOLT,Hex, M10 x 1.25 x 25mm

2шт.

11

MT40029362

BOLT,Hex, M10 x 1.5 x 25mm

1шт.

12

MT40028769

NUT,Hex, M10 x 1.5

1шт.

13

MT40028930

BOLT,Hex, M8 x 1.25 x 60mm

3шт.

14

MT40330664

PIPE

1st-R

1шт.

15

MT40330660

PIPE

1st-L

1шт.

16

MT40235530

BRACKET

Aux Pipe

1шт.

17

MT40330662

BRACKET

Remote Pipe

1шт.

18

MT40230238

COUPLING, QUICK, FEM,1/2"

2шт.

19

MT40234922

DUST CAP

Black

2шт.

20

MT40330661

PIPE

1шт.

21

MT40029008

BOLT,Hex, M8 x 1.25 x 25mm

1шт.

22

MT40276074

ROD

Remote Lever

1шт.

23

MT40275674

CLEVIS

1шт.

24

MT40032262

PIN,1mm OD x 20mm L

1шт.

25

MT40029130

PIN,M6

1шт.

26

MT40254770

LEVER

Remote

1шт.

27

MT40279021

KNOB

1шт.

28

MT40279018

CAP

Remote Lever

2шт.

29

MT40056836

RING,M10

1шт.

30

MT40010321

BOLT,Union, PF 3/8" x 22mm OD

3шт.

31

MT40012415

SEAL,16.8mm ID x 1.5mm Thk

7шт.

32

MT40029006

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

33

MT40256191

DECAL

Aux Control

1шт.
