(55.518.020) - REAR, WIPER MOTOR, WINDOW

Запчасти Case IH FARMALL 40C (55.518.020) - REAR, WIPER MOTOR, WINDOW (55) - ELECTRICAL SYSTEMS

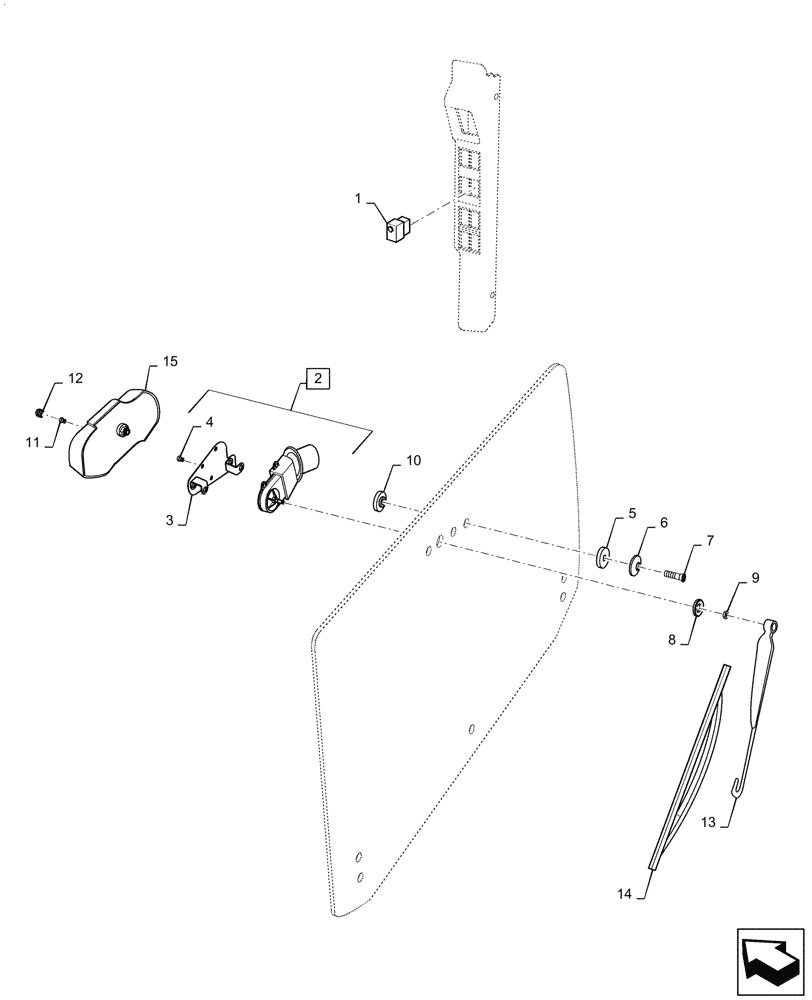

Схема запчастей Case IH FARMALL 40C - (55.518.020) - REAR, WIPER MOTOR, WINDOW (55) - ELECTRICAL SYSTEMS
13
12
7
14
11
1
10
5
3
8
9
4
6
2
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40308093

SWITCH

Switch, Wiper Motor

1шт.

2

MT40309161

WIPER MOTOR

Assy Incl 3, 4

1шт.

3

MT40311374

BRACKET

Wiper Motor

1шт.

4

MT40028706

SCREW,M4 x 0.7 x 12mm

4шт.

5

MT40008342

CUSHION,37mm OD x 9mm ID x 5mm Thk

2шт.

6

MT40008374

SPACER

2шт.

7

MT40028675

SCREW,M8 x 1.25 x 35mm

2шт.

8

MT40007358

GROMMET,21mm OD x 5mm Thk

Rear Wiper

1шт.

9

MT40027838

NUT

Lock

1шт.

10

MT40008336

CUSHION,16mm OD x 9mm ID x 5mm Thk

Plastic

2шт.

11

MT40028964

BOLT,Hex, M6 x 1 x 16mm

2шт.

12

MT40294604

CAP

Console

2шт.

13

MT40265169

WIPER ARM

Rear

1шт.

14

MT40296976

WIPER BLADE,14”

1шт.

15

MT40317056

COVER

Wiper Motor

1шт.

16

MT40273858

PUMP

1шт.
