(50.200.040) - AIR CONDITIONING, BLOWER

Запчасти Case IH FARMALL 40C (50.200.040) - AIR CONDITIONING, BLOWER (50) - CAB CLIMATE CONTROL

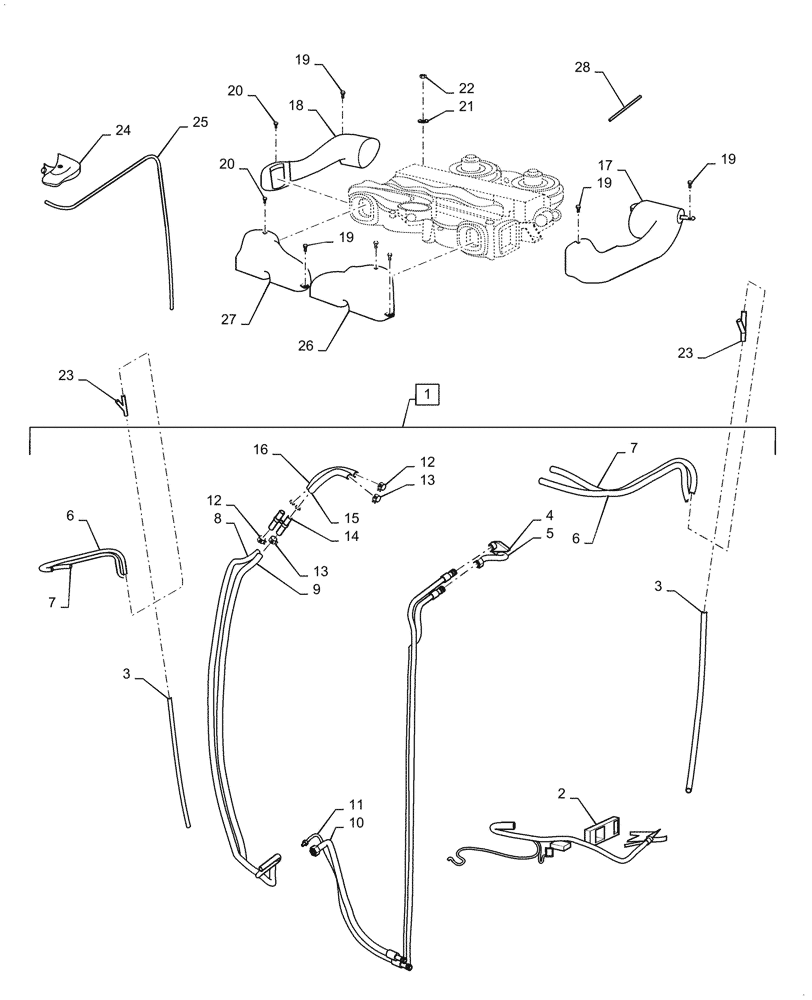

Схема запчастей Case IH FARMALL 40C - (50.200.040) - AIR CONDITIONING, BLOWER (50) - CAB CLIMATE CONTROL
19
19
27
19
9
1
18
12
4
6
6
20
17
24
16
7
7
20
15
3
3
14
19
26
11
12
25
23
8
2
10
28
5
21
13
13
22
23
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

MT40351926

KIT

HVAC, Incl 2-16

1шт.

2

MT40351476

CONTROLLER,230mm x 80mm x 70mm

A/C

1шт.

3

MT40351934

HOSE

Drain Lower

2шт.

4

MT40351929

UNIVERSAL JOINT

Liquid

1шт.

5

MT40351930

UNIVERSAL JOINT

Suction

1шт.

6

MT40351933

HOSE

Drain

2шт.

7

MT40351936

HOSE

Drain

2шт.

8

MT40351942

HOSE

Water, High Temp

1шт.

9

MT40351944

HOSE

Water, Low Temp

1шт.

10

MT40351941

HOSE

Suction

1шт.

11

MT40351939

HOSE

Liquid

1шт.

12

MT40351914

CLAMP

3шт.

13

MT40351915

CLAMP

3шт.

14

MT40351861

UNIVERSAL JOINT,80mm x 60mm x 50mm

Water Bypass

1шт.

15

MT40351940

HOSE

Low Temp

1шт.

16

MT40351938

HOSE

High Temp

1шт.

17

MT40254749

DUCT

LH Vent

1шт.

18

MT40254750

DUCT

RH Vent

1шт.

19

MT40093946

BOLT,Hex, M6 x1 x 16mm

8шт.

20

MT40029022

SCREW,M4 x 1.4 x 16mm

4шт.

21

MT40028196

WASHER,8.4mm ID x 26mm OD x 2.5mm Thk

6шт.

22

MT40028720

NUT,Hex, M8 x 1.25

6шт.

23

MT40292686

UNIVERSAL JOINT

Drain

2шт.

24

MT40275972

HOSE

Water Pocket

1шт.

25

MT40007904

HOSE,7.5mm ID x 9.5mm OD x 1800mm L

Drain

1шт.

26

MT40254748

DUCT

LH Defrost

1шт.

27

MT40254747

DUCT

RH Defrost

1шт.

28

MT40012737

BAND,143mm L x 7.5mm

Wire

2шт.
