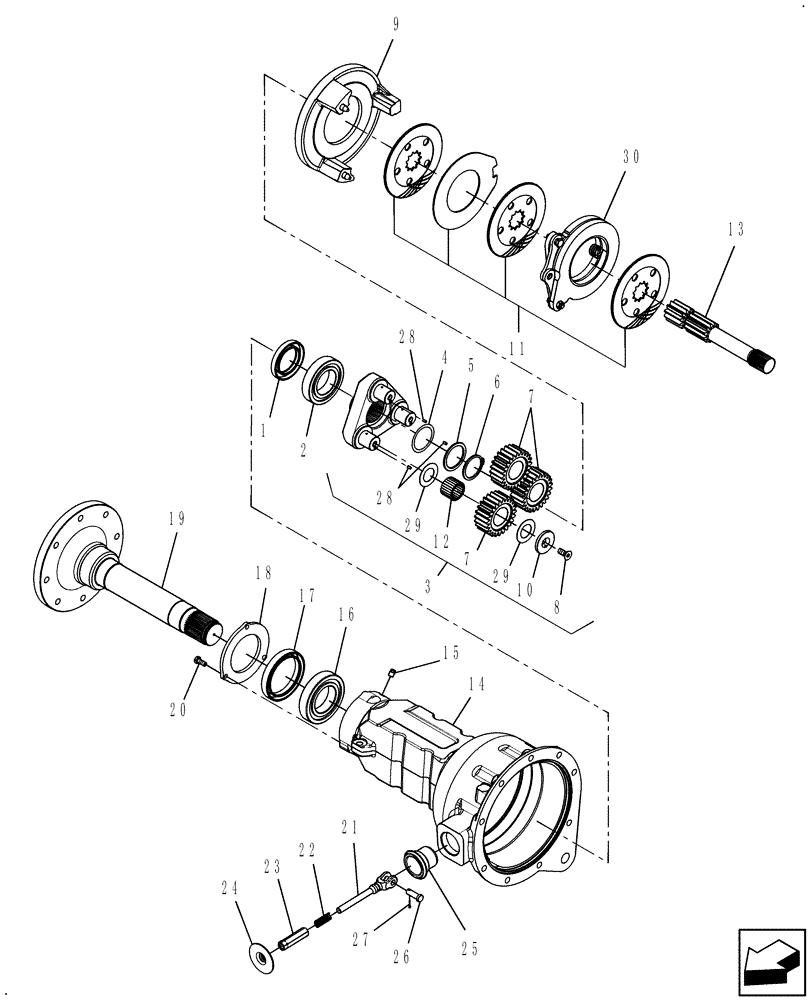

Запчасти Case IH FARMALL 40B CVT (27.124.AD[02]) - RH FINAL REDUCTION HOUSING (27) - REAR AXLE SYSTEM

1

GRT3347723

SEAL

57 x 85 x 12

1шт.

2

87562562

BALL BEARING,55mm ID x 100mm OD x 21mm W

55 x 100 x 21

1шт.

3

NS

NOT SERVICED

Planetary Carrier

1шт.

4

87387607

SHIM

Register Ring

1шт.

5

87387605

SPACER

Planetary Carrier

1шт.

6

GRT3347733

RING

Retaining

1шт.

7

87387596

PINION

Planetary Ring

3шт.

8

84145871

BOLT,Hex, M10 x 1.25 x 25mm, Cl 8.8

M10 x 25

3шт.

9

GRT3VT01453

FLANGE

Brake Disc Support

1шт.

10

87654057

SPACER

Planetary Gear

3шт.

11

GRT3VT01473

KIT

Kit

1шт.

12

GRT3484343

BEARING, ROLLER, CYL

Planetary Gear

3шт.

13

87370376

SHAFT

LH Differential

1шт.

14

GRT3VT03033

AXLE HOUSING

RH Side Reduction

1шт.

15

NS

NOT SERVICED

Tapered Threaded Plug M10 x 1 x 14

1шт.

16

GRT70912

BALL BEARING

60 x 110 x 22

1шт.

17

GRT3347693

SEAL

85 x 110 x 16

1шт.

18

87387599

CAP

Wheel Shaft Cover

1шт.

19

87573415

SHAFT

Axle Flange Wheel

1шт.

20

GRT71149

SCREW

M8 x 20 CL 8.8

3шт.

21

GRT3348203

ROD

Brake

1шт.

22

GRT3459233

SPRING

Bellow Cover Retaining

1шт.

23

GRT3348193

BOLT

Brake Rod Stroke Set

1шт.

24

87387625

GUARD

Bellow Cover

1шт.

25

82037652

SEAL,12mm ID x 57mm OD x 28mm Thk

Anti-Dust Brake Rod

1шт.

26

GRT3348123

PIN

Brake Rod Linkage

1шт.

27

87481414

COTTER PIN

Split, 3.2 x 18

1шт.

28

87654056

Planetary Gear Pin Anti-Rotation

3шт.

29

GRT3347713

SPACER

Planetary Gear

6шт.

30

NS

NOT SERVICED

Brake Mechanism

1шт.
