(27.120.AF[02]) - PLANETARY GEAR SET

Запчасти Case IH FARMALL 40B CVT (27.120.AF[02]) - PLANETARY GEAR SET (27) - REAR AXLE SYSTEM

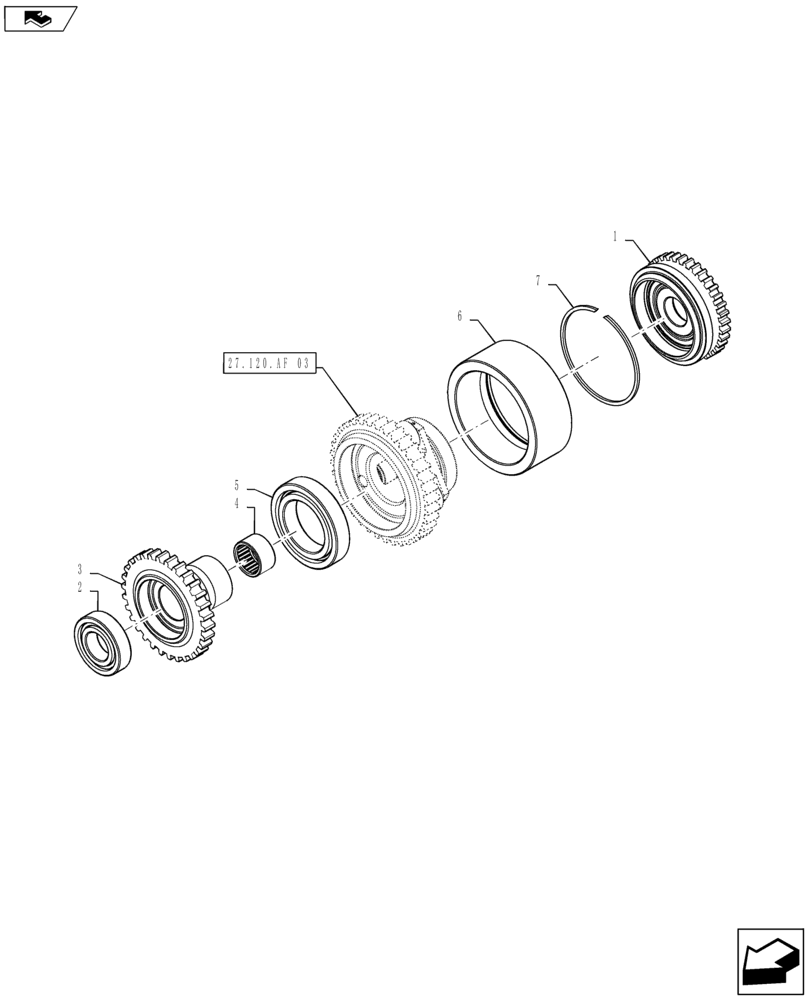

Схема запчастей Case IH FARMALL 40B CVT - (27.120.AF[02]) - PLANETARY GEAR SET (27) - REAR AXLE SYSTEM
27.120.af 03
2
3
home
7
4
5
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

GRT3514553

GEAR

CROWN ASSEMBLY

1шт.

2

GRT3478413

BALL BEARING,30mm ID x 62mm OD x 16mm W

30 x 62 x 16

1шт.

3

GRT3346103

SUN GEAR

1шт.

4

GRT3478423

NEEDLE BEARING

Shell, 30 x 37 x 20

1шт.

5

GRT72234

ROLLER BEARING

55 x 90 x 18

1шт.
