(27.106.AK) - DIFFERENTIAL LOCK

Запчасти Case IH FARMALL 40B CVT (27.106.AK) - DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM

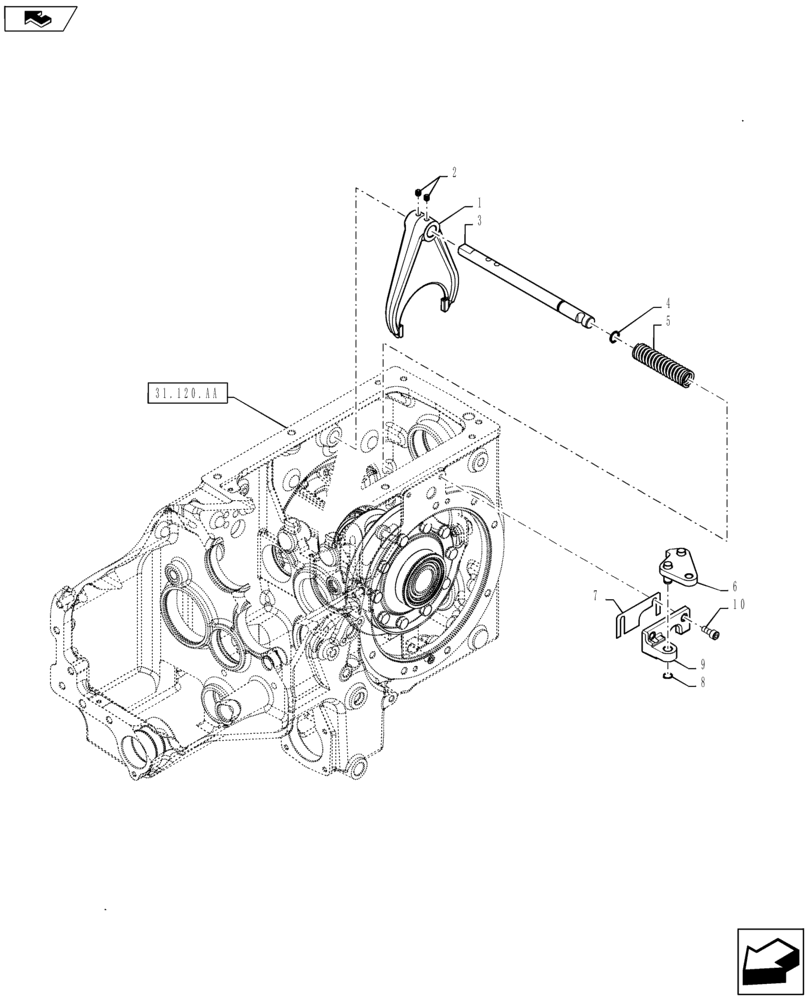

Схема запчастей Case IH FARMALL 40B CVT - (27.106.AK) - DIFFERENTIAL LOCK (27) - REAR AXLE SYSTEM
1
home
7
2
8
6
5
9
10
4
3
31.120.aa
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

GRT3459173

FORK

Differential Lock

1шт.

2

GRT72389

SCREW

M8 x 10 CL 10.9

2шт.

3

GRT3346713

ROD

Differential Fork Shifting

1шт.

4

GRT70460

O-RING

Seal 1.78 x 15.6

1шт.

5

GRT3347173

SPRING

Differential Lock

1шт.

6

GRT3346993

CAM

Differential Lock

1шт.

7

GRT3347873

SHIM

Differential Lock Fork

1шт.

8

GRT71333

RING

Retaining

1шт.

9

GRT3346983

SUPPORT

Differential Lock Lever

1шт.

10

GRT71346

SCREW

M8 x 20 CL 8.8

2шт.
