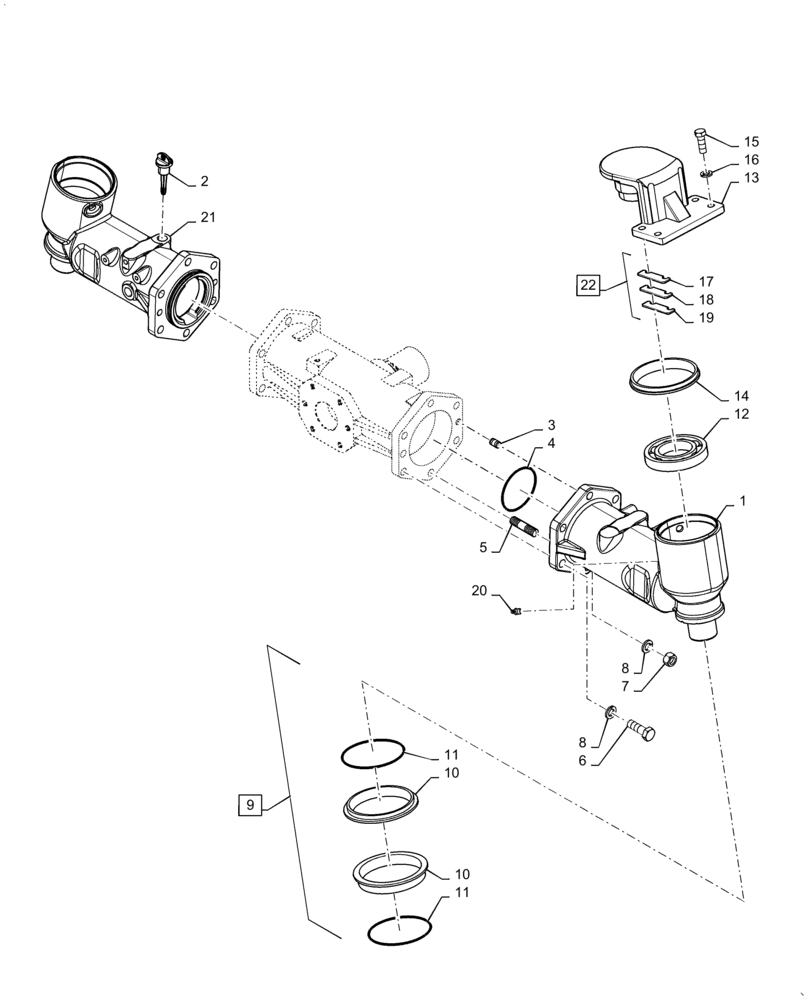

Запчасти Case IH FARMALL 40B CVT (25.106.AC[01]) - BEVEL GEAR, HOUSING & COVERS -ASN ZDMB12180 (25) - FRONT AXLE SYSTEM

1

47515027

AXLE HOUSING

LH

1шт.

2

47515055

GAUGE

Oil

1шт.

3

10839810

DOWEL,12mm OD x 18mm L

4шт.

4

455025

O-RING,0.139" Thk x 4.234" ID, -244, Cl 5, 75 Duro

2шт.

5

47515060

STUD

4шт.

6

11394321

BOLT,Hex, M14 x 1.5 x 45mm, Cl 8.8, Full Thd

8шт.

7

86639148

NUT,M14 x 1.5, Cl 8

4шт.

8

892-11014

LOCK WASHER,14.5mm ID x 24.1mm OD x 4.5mm Thk

12шт.

9

47515065

SEAL

Assy. Incl 10 - 11

2шт.

10

47550070

SEALING RING

Incl in 9

2шт.

11

274658

O-RING,0.21" Thk x 2.475" ID, -333, Cl 5, 75 Duro

Incl in 9

2шт.

12

556884

BALL BEARING,65mm ID x 100mm OD x 18mm W

2шт.

13

47515068

SUPPORT

Bevel Gear

2шт.

14

47515073

SEAL

2шт.

15

86637970

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

8шт.

16

10571979

LOCK WASHER,M12

8шт.

17

47515077

SHIM

0.5

1шт.

18

47515078

SHIM

0.8

1шт.

19

47515081

SHIM

1.2

1шт.

20

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

21

47542255

AXLE HOUSING

RH

1шт.

22

47544430

SHIM KIT

Bevel Gear Shims, Incl 17 - 19

2шт.
