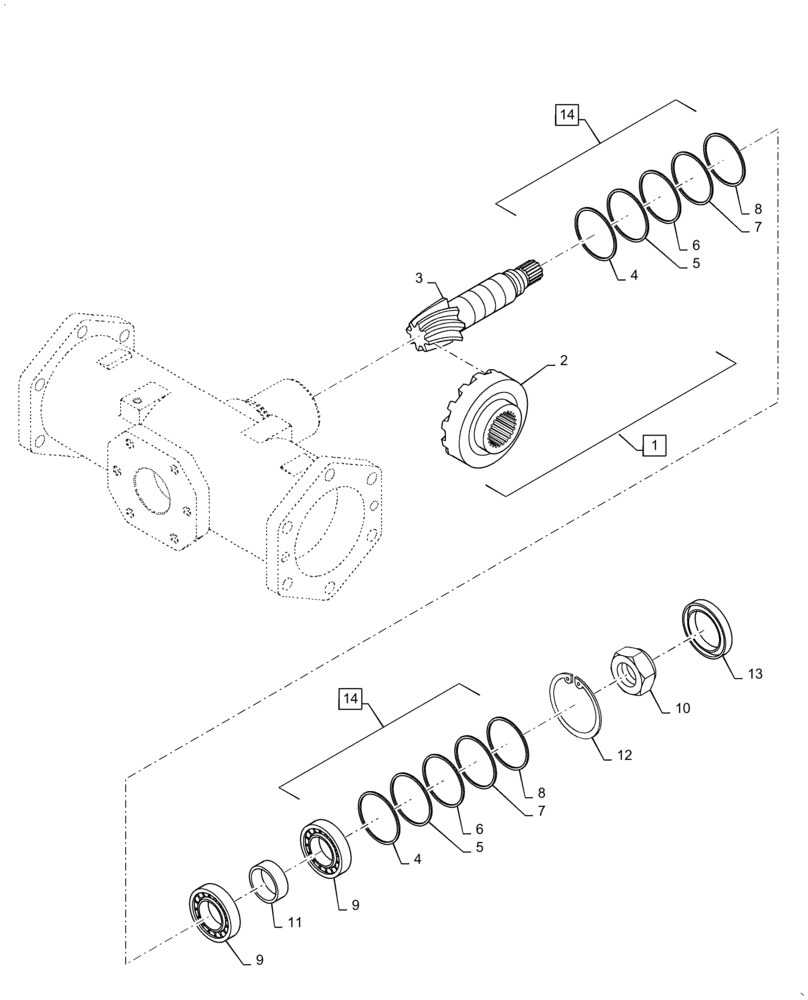

Запчасти Case IH FARMALL 40B CVT (25.102.AB[01]) - BEVEL PINION, SHAFT - ASN ZDMB12180 (25) - FRONT AXLE SYSTEM

1

47514886

BEVEL GEAR

Assy, Front Axle, Incl 2 & 3

1шт.

2

47486601

GEAR

Bevel, 10 Tooth, S/P Pinion,Incl in 1

1шт.

3

47486603

GEAR

Bevel, 22 Tooth, S/P Ring,Incl in 1

1шт.

4

47514903

SHIM

Incl in 14

2шт.

5

47514916

SHIM

Incl in 14

2шт.

6

47514919

SHIM

Incl in 14

2шт.

7

47514926

SHIM

Incl in 14

2шт.

8

47514936

SHIM

Incl in 14

2шт.

9

47546703

TAPERED BEARING

2шт.

10

47546692

LOCK NUT

1шт.

11

47546693

SPACER

Tube

1шт.

12

84163829

RING,58mm, PHC

1шт.

13

47549370

OIL SEAL

1шт.

14

47544426

SHIM KIT

Pinion

2шт.
