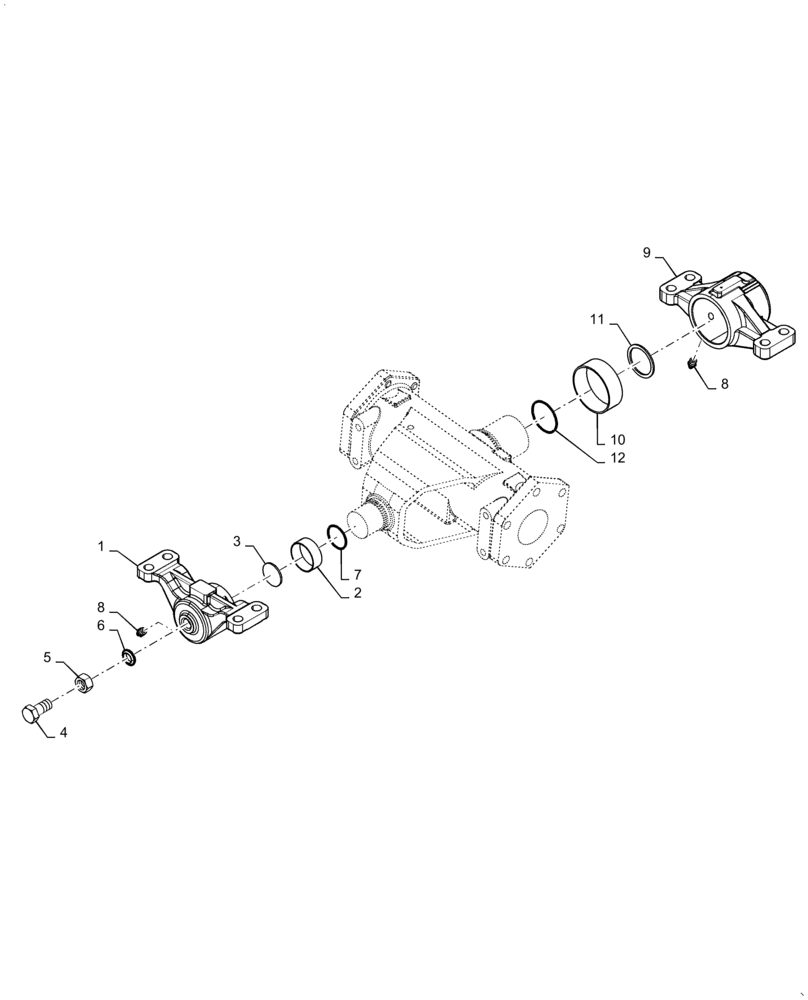

Запчасти Case IH FARMALL 40B CVT (25.100.AV[01]) - FRONT AXLE, BRACKET - ASN ZDMB12180 (25) - FRONT AXLE SYSTEM

1

47546701

BRACKET

Front Axle

1шт.

2

47546702

BUSHING

1шт.

3

47546705

PLATE

Axle

1шт.

4

11376221

BOLT,Hex, M16 x 1.5 x 35, 8.8, Full Thd

1шт.

5

331192

NUT,M16 x 1.5, Cl 8

1шт.

6

47546704

SEAL

1шт.

7

272380

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

1шт.

8

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

9

47546706

BRACKET

Rear

1шт.

10

47546707

BUSHING

Rear

1шт.

11

47546708

PLATE

1шт.

12

86977781

O-RING,0.139" Thk x 2.609" ID, -231, Cl 5, 75 Duro

1шт.
