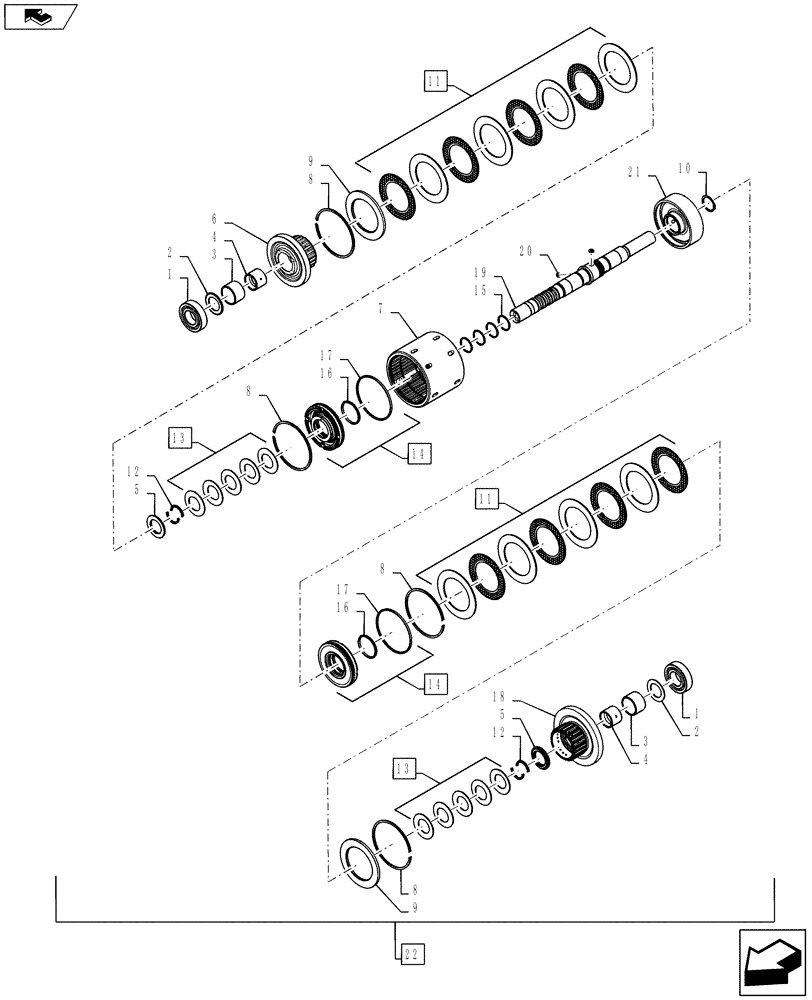

Запчасти Case IH FARMALL 40B CVT (21.507.AF) - FORWARD/REVERSE SHUTTLE CLUTCH (21) - TRANSMISSION

1

GRT3478413

BALL BEARING,30mm ID x 62mm OD x 16mm W

30 x 62 x 16

2шт.

2

GRT3346363

BEARING WASHER

Shuttle Clutch

2шт.

3

GRT72483

NEEDLE BEARING CAGE

35 x 47 x 27

2шт.

4

GRT3469723

BUSHING

Roller Support Needle

2шт.

5

GRT3469743

WASHER

Retaining

2шт.

6

GRT3347923

GEAR

FW Shuttle Clutch 34 Teeth

1шт.

7

GRT3346293

DRUM

Shuttle Clutch

1шт.

8

GRT72484

RING

Retaining

4шт.

9

GRT3346323

PLATE

Reaction

2шт.

10

GRT70206

RING

Retaining

1шт.

11

GRT3VT01363

KIT

Shuttle Clutch Disc

1шт.

12

GRT3469733

HALF-RING

Retaining

4шт.

13

GRT3VT01353

SPRING KIT

Disc

1шт.

14

GRT3VT01343

PISTON

Shuttle Clutch

2шт.

15

GRT3478273

SEAL

Piston Ring

4шт.

16

GRT3347633

SEAL

Double Delta Hydraulic

2шт.

17

GRT3347643

SEAL

Double Delta Hydraulic

2шт.

18

GRT3347933

GEAR

RW Shuttle Clutch 30 Teeth

1шт.

19

GRT3VT01373

CLUTCH INPUT SHAFT

1шт.

20

GRT3346303

NOZZLE

2шт.

21

GRT3347683

SUPPORT

Clutch

1шт.

22

GRT3469683

CLUTCH OVERHAUL KIT

Includes 1 - 14, 16 - 21

1шт.
