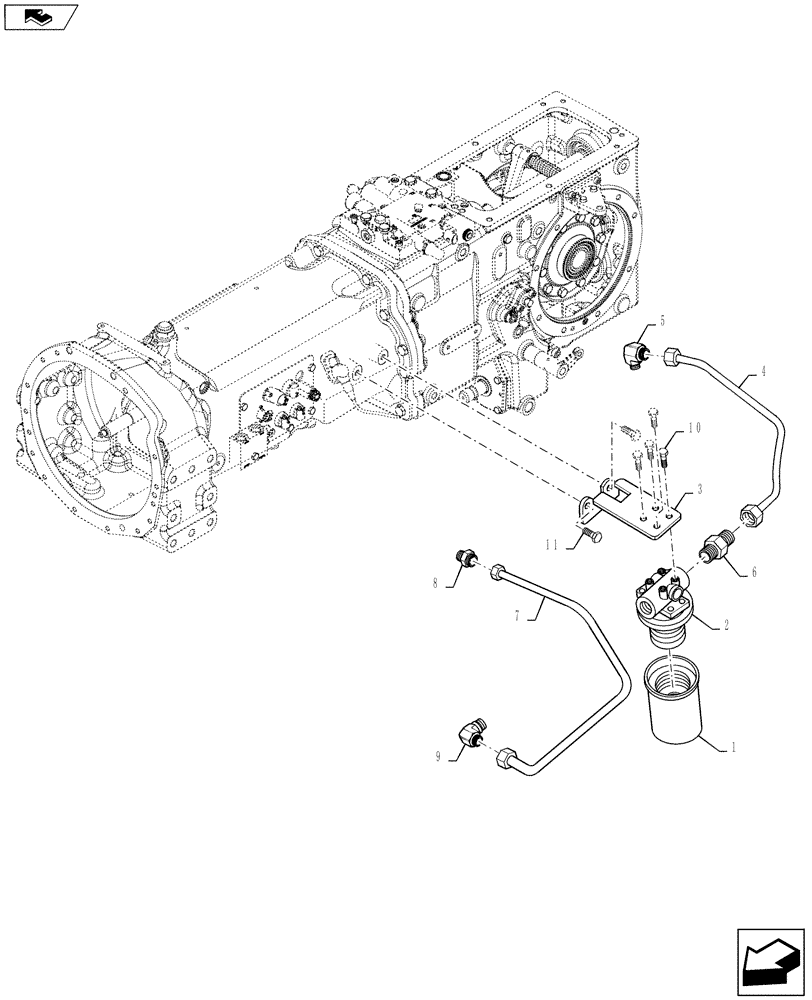

Запчасти Case IH FARMALL 40B CVT (21.506.AA[02]) - COMPLETE TRANSMISSION EXTERNAL FILTER & PIPING (21) - TRANSMISSION

1

84582342

HYDRAULIC OIL FILTER

FILTER

1шт.

2

87528219

FILTER HEAD

HEAD FILTER

1шт.

3

84601968

BRACKET

BRACKET

1шт.

4

84570448

HYDRAULIC HOSE

PIPE, OIL DELIVERY

1шт.

5

86579689

ELBOW,90 Degree, 13/16" - 16 ORFS x M14 x 1.5 ORB

1шт.

6

86597761

HYD CONNECTOR,13/16"-16 ORFS x M27 x 2.0 ORB

1шт.

7

84570449

TUBE

PIPE, OIL RETURN

1шт.

8

86579674

HYD CONNECTOR,13/16"-16 ORFS x M14 x 1.5 ORB

1шт.

9

86579697

ELBOW,90 Degree, 1-3/16"-12 ORFS x M27 x 2.0 ORB

1шт.

10

86531147

BOLT,Hex, M10 x 16mm, Cl 8.8, Full Thd

4шт.

11

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
