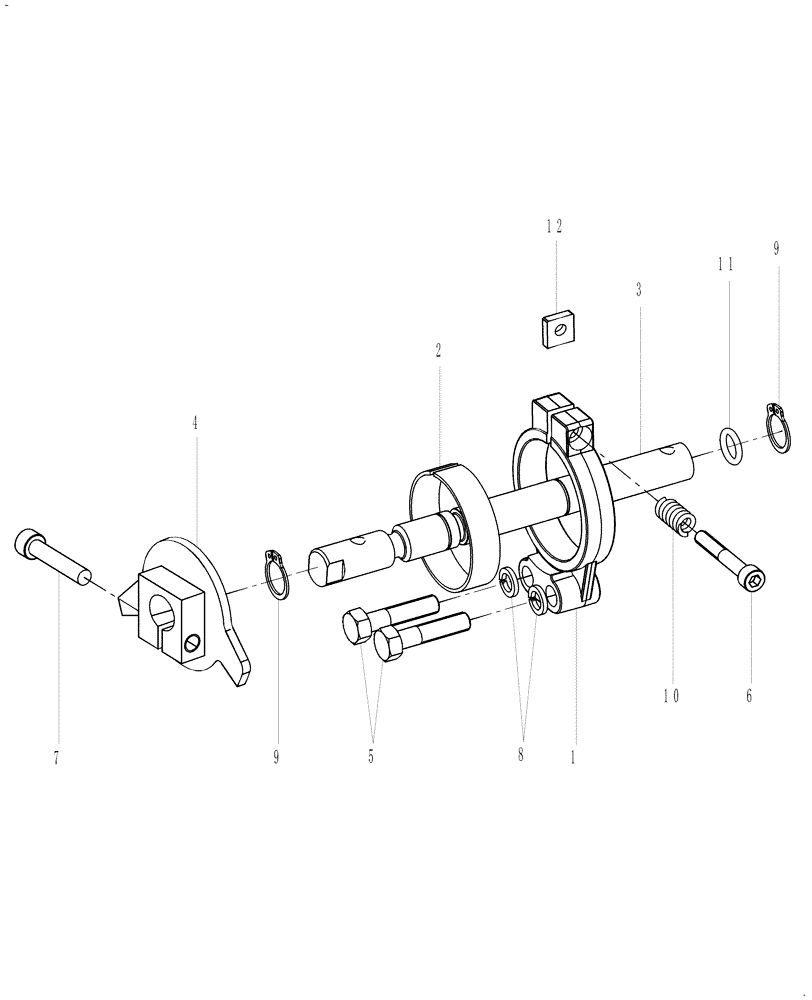

Запчасти Case IH FARMALL 40B CVT (21.504.AK[11]) - CONTROL LEVER (21) - TRANSMISSION

1

84188557

HUB

Clutch

1шт.

2

84188558

CLUTCH

50/53 x 13.5

1шт.

3

84188559

SHAFT

1шт.

4

84188561

CONTROL LEVER

Position

1шт.

5

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

6

14305821

HEX SOC SCREW,M6 x 40mm, Cl 8.8

1шт.

7

86625221

HEX SOC SCREW,M8 x 30mm, Cl 8.8

1шт.

8

87016619

LOCK WASHER,M8

2шт.

9

84188564

SNAP RING

2шт.

10

84188566

SPRING

1шт.

11

NSS

NOT SOLD SEPARAT

Seal Included in 84188505 Seal Kit Refer to 21.504.AK(07)

1шт.

12

NSS

NOT SOLD SEPARAT

Seal Included in 84188505 Seal Kit Refer to 21.504.AK(07)

1шт.
