Запчасти Case IH FARMALL 40B CVT (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE

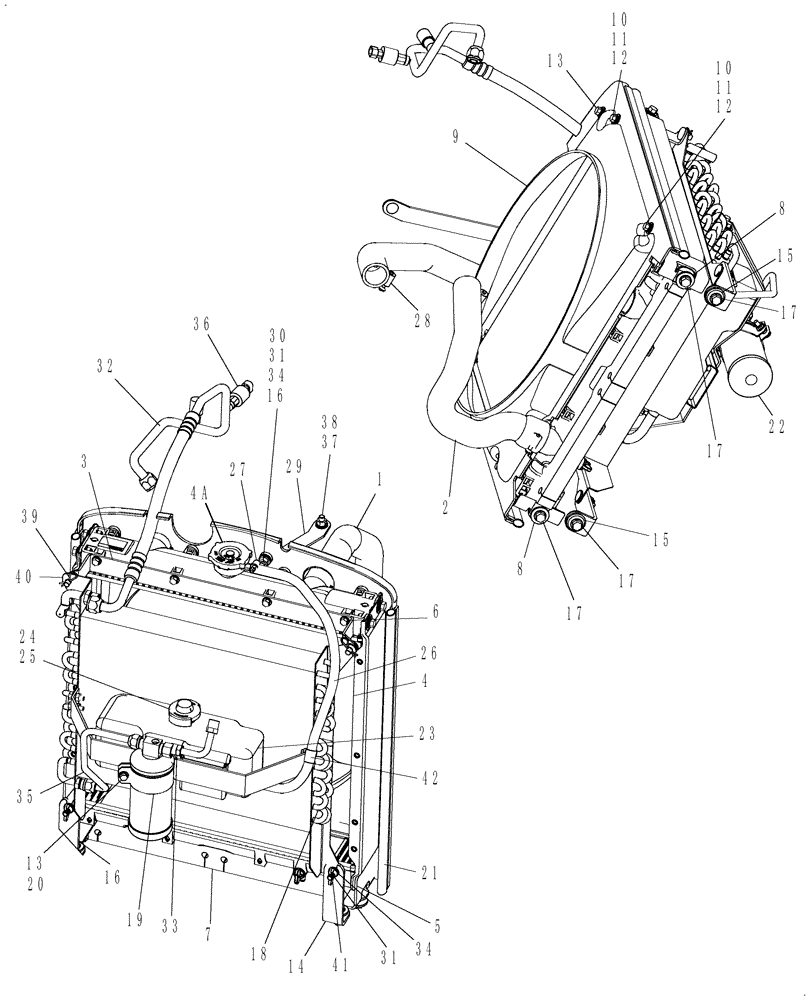

Схема запчастей Case IH FARMALL 40B CVT - (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE
33
19
2
29
13
5
18
32
31
12
7
17
12
27
20
3
39
31
41
10
16
1
11
34
17
14
36
21
15
24
6
25
17
11
22
10
4
34
40
8
28
37
15
23
38
17
4a
8
9
13
35
30
16
26
42

Артикул

Название

Примечание

Количество

1

87389758

HOSE

Upper

1шт.

2

87308725

RADIATOR HOSE,33.00 mm ID, 41.00 mm ID, 172.00 mm

Lower

1шт.

3

87557847

BRACKET

Upper Condensor Mounting

1шт.

4

87305449

RADIATOR

Includes: Ref. 4A & 4B

1шт.

4a

87522876

RADIATOR CAP

1шт.

4b

87032485

DRAINCOCK/TAP SUPPLY

1шт.

Not Illustrated

1шт.

5

87324723

BRACKET, SUPPORTING

Radiator

2шт.

6

86050272

BOLT,M6 x 1 x 18.6mm OAL, Cl 8.8, Full Thd

4шт.

7

87308701

SEAL

Battery Plate W/Oil Cooler

1шт.

8

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

4шт.

9

87379658

FAN

Shroud, HVAC Version

1шт.

9a

87582346

SHROUD

Seal

1шт.

Not Illustrated

1шт.

10

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

11

86517328

LOCK WASHER,6.1mm ID x 11.8mm OD x 1.7mm Thk

8шт.

12

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

8шт.

13

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

5шт.

14

87354577

BRACKET

1шт.

15

86400620

ISOLATOR

2шт.

16

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

17

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

4шт.

18

87317808

CONDENSER

A/C

1шт.

19

87359828

BRACKET

Bottle & Dryer Mounting

1шт.

20

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

21

87324971

EDGE

Trim, Shroud Edge

2шт.

Used with 84162655 Side Seal Fig. 08.03

1шт.

22

82023593

RECEIVER-DRYER

1шт.

23

5176648

TANK

1шт.

24

4153008

SEAL

Cap Seal

1шт.

25

4274034

CAP

Cap, Recovery Bottle

1шт.

26

87324970

BOTTLE

Recovery Bottle

1шт.

27

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

2шт.

28

84674

HOSE CLAMP,33.3mm - 57.1mm, Worm Gear

4шт.

29

87390259

BRACKET

1шт.

30

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

1шт.

31

140016

WASHER,M8 x 16mm OD x 1.6mm Thk

3шт.

32

87379713

HOSE

Discharge

1шт.

33

87327266

HYD CONNECTOR

A/C

1шт.

34

87016617

LOCK WASHER,M8

3шт.

35

87360243

TUBE,7.50 mm ID x 9.50 mm OD

Condenser-Dryer

1шт.

36

87363059

PRESSURE SWITCH

High Pressure

1шт.

37

86507486

CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8

1шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

1шт.

39

87557854

PIN

2шт.

40

87557851

SPACER

2шт.

41

84807781

WING NUT,M8

2шт.

42

257492

CLAMP,14.3mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

Выбрано товаров: 48
