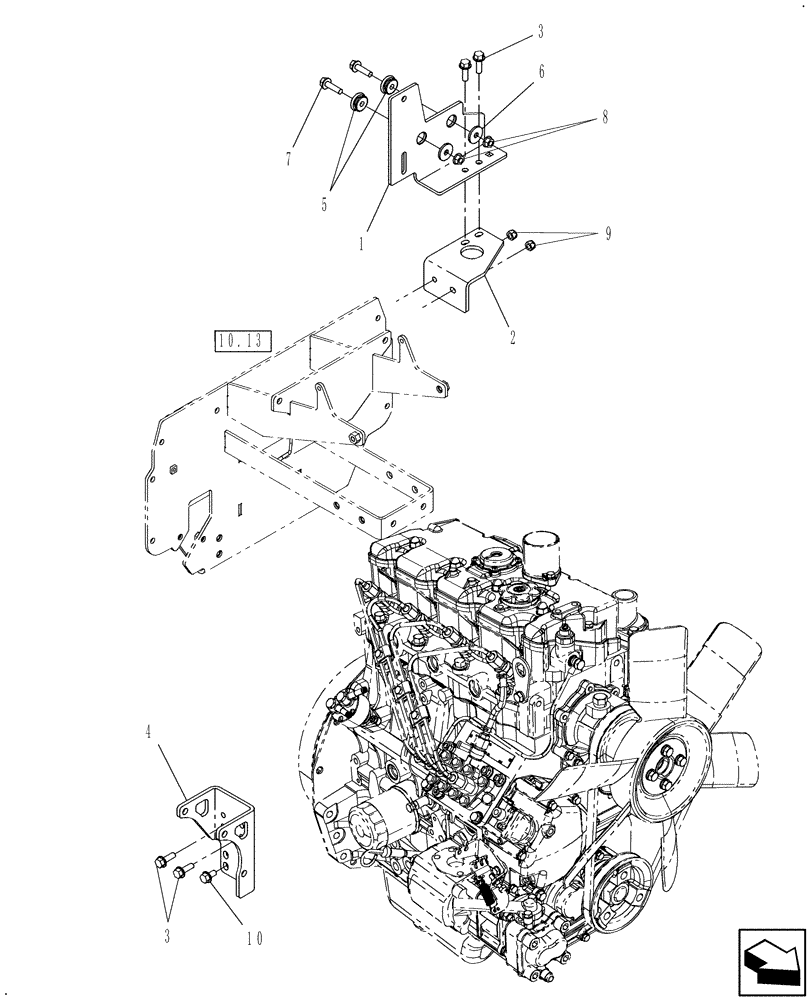

Запчасти Case IH FARMALL 40B CVT (10.202.AB[03]) - AIR CLEANER BRACKET (10) - ENGINE

1

87739868

BRACKET

Air Filter Mount

1шт.

2

87728795

BRACKET

A/C Compressor Support

1шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

4

87728790

BRACKET

Air Compressor Mounting

1шт.

5

86400620

ISOLATOR

2шт.

6

86549853

WASHER,8.4mm ID x 28mm OD x 3mm Thk

2шт.

7

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

9

86629542

NUT,M8 x 1.25, Cl 8.8

2шт.

10

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.
