Запчасти Case IH FARMALL 40B CVT (10.103.AA) - CRANKSHAFT & PISTONS (10) - ENGINE

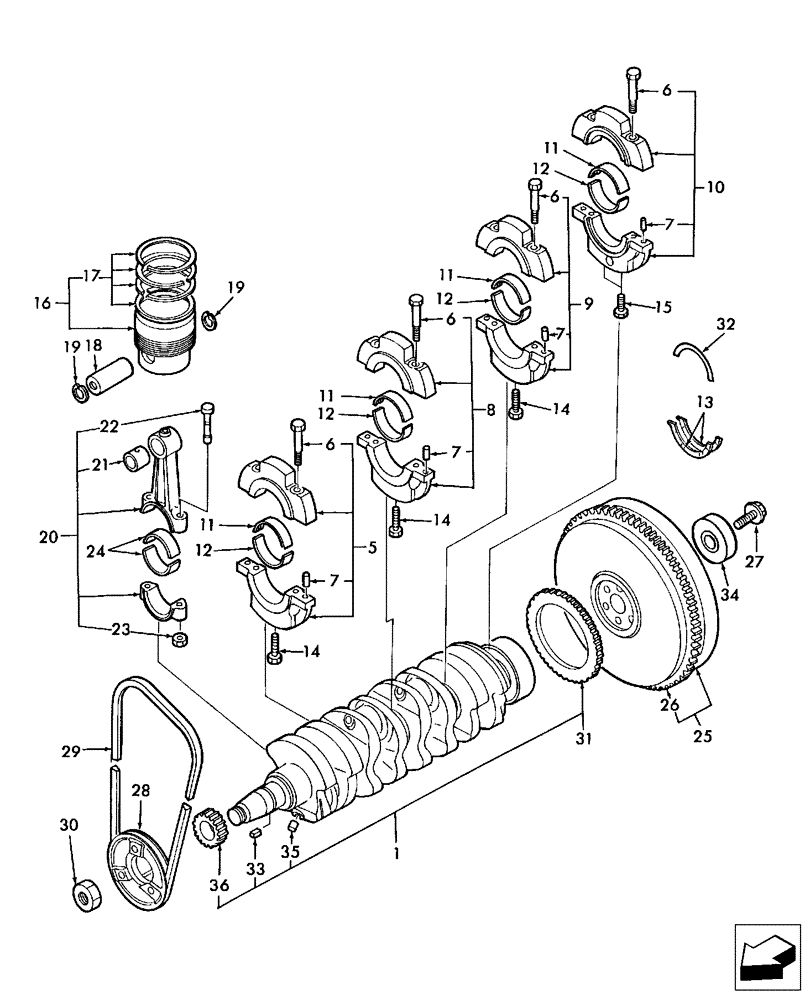

Схема запчастей Case IH FARMALL 40B CVT - (10.103.AA) - CRANKSHAFT & PISTONS (10) - ENGINE
18
12
12
10
35
24
14
33
8
23
30
20
6
7
7
29
36
6
11
9
27
32
21
12
16
25
5
13
7
22
19
14
15
11
19
17
6
31
7
12
34
14
26
11
11
28

Артикул

Название

Примечание

Количество

1

SBA115256850

CRANKSHAFT

Incl 31, 33, 35, 36 FARMALL 40B CVT

1шт.

1

SBA115256850R

REMAN-CRANKSHAFT

FARMALL 40B CVT Compact Tractor W/ Cab, On & Above PIN # ZCME21001

1шт.

1

SBA115256850C

CORE-CRANKSHAFT

Return Number

1шт.

1

SBA115256841

CRANKSHAFT

Incl 31, 33, 35, 36 FARMALL 45B, 50B CVT

1шт.

1

SBA115256841R

REMAN-CRANKSHAFT

FARMALL 45B CVT Compact Tractor W/ Cab, On & Above PIN # ZCME21001, FARMALL 50B CVT Compact Tractor W/ Cab, On & Above PIN # ZCME21001

1шт.

1

SBA115256841C

CORE-CRANKSHAFT

Return Number

1шт.

5

SBA110156360

HOLDER

Bearing, Incl 6, 7, FARMALL 40B CVT

1шт.

5

SBA110156250

HOLDER

Bearing, Incl 6, 7, FARMALL 45B, 50B CVT

1шт.

6

SBA010109406

BOLT

8шт.

7

SBA030500612

DOWEL

8шт.

8

SBA110156171

HOLDER

Bearing, Incl 6, 7, FARMALL 40B CVT

1шт.

8

SBA110156370

BEARING CAP

Bearing, Incl 6, 7, FARMALL 45B, 50B CVT

1шт.

9

SBA110156181

HOLDER

Bearing, Incl 6, 7, FARMALL 40B CVT

1шт.

9

SBA110156380

BEARING CAP

Bearing, Incl 6, 7, FARMALL 45B, 50B CVT

1шт.

10

SBA110156191

HOLDER

Bearing Holder Assy, Incl 6, 7, FARMALL 40B CVT

1шт.

10

SBA110156390

BEARING CAP

Bearing Holder Assy, Incl 6, 7, FARMALL 45B, 50B CVT

1шт.

11

SBA198517232

BEARING LINER,Std., Upper

4шт.

11

SBA198517236

BEARING LINER,.010" U/S, Upper

(0.25mm)

4шт.

Not Included in Long Block

1шт.

11

SBA198517239

BEARING LINER,.020" U/S, Upper

(0.50mm)

4шт.

Not Included in Long Block

1шт.

12

SBA198517242

BEARING LINER,Std., Lower

4шт.

12

SBA198517246

BEARING LINER,.010" U/S, Lower

(0.25mm)

4шт.

Not Included in Long Block

1шт.

12

SBA198517249

BEARING LINER,.020" U/S, Lower

(0.50mm)

4шт.

Not Included in Long Block

1шт.

13

SBA199266200

THRUST WASHER

2шт.

14

SBA011511070

BOLT,M10 x 70

3шт.

15

SBA010700860

BOLT

M8 x 60

2шт.

16

SBA115017541

PISTON & RINGS KIT

Standard, FARMALL 40B CVT Incl 17 SBA115107970

4шт.

16

SBA115017491

PISTON & RINGS KIT

Standard, FARMALL 45B, 50B CVT Incl 15 SBA115017970

4шт.

17

SBA115107970

SET OF RINGS

Contains a 3 MM width oil ring Included in Kit SBA115017491 & SBA115017541

4шт.

18

SBA115326220

PISTON PIN,33mm OD

4шт.

19

301642

SNAP RING,M28, Int

8шт.

20

SBA115026251

CONNECTING ROD

Incl 21 - 23, FARMALL 40B CVT

4шт.

SBA115026251R

REMAN-CONNECTING ROD

FARMALL 40B CVT,FARMALL 45B CVT,FARMALL 50B All ON & ABOVE PIN # ZCME21001

4шт.

SBA115026251C

CORE-ROD CONNECTING

Return Number

1шт.

20

SBA115026330

CONNECTING ROD

Incl 21 - 23, FARMALL 45B, 50B CVT

4шт.

SBA115026330R

REMAN-CONNECTING ROD

Farmall 45B, Farmall 50B, Both w/CVT Trans. w/Cab On & Above PIN # ZCME21001

4шт.

SBA115026330C

CORE-ROD CONNECTING

Return Number

1шт.

21

SBA198517260

BUSHING

4шт.

22

SBA115176140

BOLT

Connecting Rod

8шт.

23

SBA020109120

NUT

8шт.

24

SBA198517252

BEARING LINER,Std.

8шт.

24

SBA198517256

BEARING LINER,.25mm

(.010), U/S

8шт.

Not Included in Long Block

1шт.

24

SBA198517259

BEARING LINER,Piston Rod, .020"

(.020) U/S

8шт.

Not Included in Long Block

1шт.

25

SBA115357780

ENGINE FLYWHEEL

Incl 26, FARMALL 40B CVT

1шт.

Not Included in Long Block

1шт.

25

SBA115357790

ENGINE FLYWHEEL

Incl 26, FARMALL 45B, 50B CVT

1шт.

Not Included in Long Block

1шт.

26

SBA115376040

RING GEAR

FARMALL 40B CVT

1шт.

Not Included in Long Block

1шт.

26

SBA115376160

RING GEAR

FARMALL 45B, 50B CVT

1шт.

Not Included in Long Block

1шт.

27

SBA010109341

BOLT

6шт.

Not Included in Long Block

1шт.

28

SBA115397960

PULLEY

Crankshaft

1шт.

29

301525A1

BELT,37.43” OAL

1шт.

Not Included in Long Block

1шт.

30

SBA020109086

NUT

1шт.

31

SBA165416330

GEAR

Balancer, FARMALL 40B CVT

1шт.

31

SBA165416450

GEAR

Balancer, FARMALL 45B, 50B CVT

1шт.

32

SBA199266210

THRUST WASHER

1шт.

33

SBA034100508

KEY

1шт.

34

SBA040116001

BALL BEARING

Pilot, Dual Clutch, 6001Z

1шт.

Not Included in Long Block

1шт.

35

SBA030509020

PIN

Dowel

1шт.

36

SBA115276270

GEAR

Crankshaft

1шт.

37

SBA320400680

CLUTCH DISC

1шт.

Not Illustrated

1шт.

38

87016478

HEX SOC SCREW,M6 x 10mm, Cl 12.9, Full Thd

6шт.

Not Illustrated

1шт.

Выбрано товаров: 74
